Radio shack digital 46 range multimeter
http://support.radioshack.com/productinfo/DocumentResults.asp?sku_id=22-812&Name=Search%20Results&Reuse=N

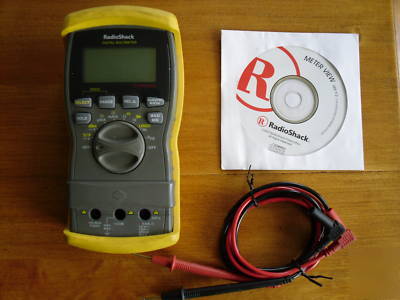

I've always tried to take very good care of it. The rubber boot is a bit smudged, and there are a few minor scratches on the multimeter, but there is nothing else wrong with it. It functions perfectly. If I recall correctly, I originally paid around $80 or $85 for it.I'll do my best to answer any questions. Below is a copy of the Specifications section from the manual:
Accuracies at 73.4 F (23 C) 5 , <75% RHDC VOLTS (Maximum Measurement: 1000V)400mV ........................................................................... 0.3% of Reading, 4 in Last Digit4V to 40V ...................................................................... 0.3% of Reading, 3 in Last Digit400V............................................................................... 0.5% of Reading, 3 in Last Digit1000V ............................................................................ 0.5% of Reading, 4 in Last DigitAC VOLTS (Maximum Measurement: 750Vrms at 50/60 Hz, Average Responses, RMS Calibrated, AC Coupled)400mV............................................................................ 0.5% of Reading, 4 in Last Digit4V to 40V ...................................................................... 0.5% of Reading, 3 in Last Digit400V .............................................................................. 0.6% of Reading, 3 in Last Digit750V .............................................................................. 0.8% of Reading, 4 in Last DigitdBm ACCURACY ( 31.8dBm to +59.7dBm at 50/60 Hz sine wave)...................................................................................................... 0.3dBm, 2 in Last DigitDC CURRENT (Maximum Measurement: 10A)400 A, 40mA, 4A.......................................................... 0.8% of Reading, 5 in Last Digit4mA, 400mA.................................................................. 0.6% of Reading, 3 in Last Digit10A ................................................................................ 1.0% of Reading, 5 in Last DigitAC CURRENT (Average Responds, RMS Calibrated, 10A Maximum, DC Coupled)400 A, 40mA, 4A.......................................................... 1.0% of Reading, 5 in Last Digit4mA, 400mA.................................................................. 0.8% of Reading, 3 in Last Digit10A ................................................................................ 1.2% of Reading, 5 in Last DigitRESISTANCE400 .............................................................................. 0.4% of Reading, 5 in Last Digit4k , 40k , 400k ........................................................ 0.3% of Reading, 3 in Last Digit4.0M ............................................................................ 0.6% of Reading, 3 in Last Digit40M ............................................................................ 1.5% of Reading, 5 in Last DigitCAPACITANCE4nF ............................................................................ 3.0% of Reading, 40 in Last Digits40nF .......................................................................... 3.0% of Reading, 10 in Last Digits400nF, 4 F, 40 F ........................................................... 2.0% of Reading, 4 in Last DigitNote: Accuracy with film capacitor or better, specified from 9.5% of full scale to full scale except 4.0nF range from 0.5nF to full scale.PULSE WIDTHS (Frequency Range: 10Hz to 100kHz)1 S to 90mS (at +5/ 0V square wave):............................ 5% of Reading, 2 in Last Digit
K-TEMPERATURE MODEThis is a special voltage mode, to be used with an optional thermocouple module that can be attached to the meter. This mode automatically converts the 1mV per C or F voltage into a readout that appears as a temperature. In these modes, the unit can show up to 999 C or F.The accuracy of these modes is determined by the external device and the accuracy of the DC volt mode. The temperature range of the newer 1mV per degree C probes is generally between 50 C and 1000 C.FREQUENCYAccuracy400Hz, 4k, 40k, 400kHz, 4MHz:.................................... 0.1% of Reading, 4 in Last DigitSensitivityThe function dial set to LOGIC/Hz (10Hz 4MHz)400Hz, 4k, 40kHz ..................................................................................................... 50 mVrms400kHz ................................................................................................................... 100 mVrms4MHz ...................................................................................................................... 250 mVrmsFor AC voltage frequency, the function dial set to C/ F / V (maximum measuring frequency 1 kHz for signal above 40V)10Hz to 1 kHz .......................................................................................................... 70 mVrms1kHz to 10 kHz ...................................................................................................... 400 mVrmsFor AC voltage frequency, the function dial set to dBm ~ V (maximum measuring frequency 1 kHz for signal above 40V)10 Hz to 200 Hz ..................................................................................................... 300 mVrms200 Hz to 1 kHz .......................................................................................................... 0.4 Vrms1 kHz to 10 kHz ............................................................................................................. 4 VrmsFor AC current frequency400 A/4mA ................................................................................. 10 Hz to 30 kHz: 250 Arms40mA/400mA .............................................................................. 10 Hz to 30 kHz: 25mArms4A/10A ............................................................................................ 10 Hz to 10 kHz: 2.5ArmsDUTY CYCLE (Frequency Range: 10 Hz to 100 kHz)10% 90% (at +5V/-0V Square wave).................................... 2 digits/kHz, 2 in last digitNote: Duty cycle accuracy depends on input signal frequency.
MASTER BKGRD 6-DIODE MODEOpen Circuit Voltage ................................................................................................ < 2.8VdcTest Current ..................................................................................................................... 1 mA TypicalLOGIC MODEMin. High-Level Voltage ....................................................................................... 2.0V 0.2VMax. Low-Level Voltage ....................................................................................... 1.0V 0.2VCONTINUITY BEEPERContinuity (short) .......................................................................................... 50 30 OhmsOpen ............................................................................................................. > 50 30 OhmsOpen Circuit ........................................................................................................... < 2.8 VoltsShort Circuit Current ............................................................................................... < 2.0 mAGENERALMaximum Common Mode Voltage ..................................................... 500VDC or RMS ACSleep Mode Timing ...................................................................................... 30 10 MinutesRange Up Detect Value ................................................................. Overflow (>4000 Counts)Range Down Detect Value ................................................................................... 380 CountsLow Battery Indication ......................................................................................... 6.3V 0.3 VSleep Mode Current .................................................................... 10 A Normal, 20 A Max.Input Impedance ................................................................................... DCV/ACV: 10MohmPower Source ........................................................................ One 9V battery (not supplied)Operating Temperature .............................................................. 41 to 104 F (5 to +40 C)Storage Temperature ............................................................. 4 to 140 F ( 20 to +60 C)Humidity ...............Maximum Relative Humidity 80% for temperatures up to 87 F (31 C),...............................................decreasing linearity to 50% relative humidity at 104 F (40 C)Pollution Degree......................................................................................................................2Dimensions (H W D) .............................. 7 3 7/16 1 11/16 Inches (178 88 43 mm)Weight .............................................................................................. Approx 10.44 oz (296 g)
