Rock crawler hydraulic steering valve - 7.56 cid & lr
Brand new steering control with manual steering check valve made by M+S Hydraulics, a Bulgarian hydraulics company. These economical and reliable units have been in our product line for over 10 years now with excellent results and we offer a one year warranty against all defects. We also provide service and repair parts in house for these in case you ever need it.
This is a load reaction unit (wheels can return to center) and should be used with a balanced (double rod) cylinder or two identical single ended cylinders. If you have a single ended cylinder you should look at the NON-LOAD reaction units also in our store.
This size works well with many popular cylinders to give the normal 3-4 steering wheel turns lock-to-lock, but if you are unsure of the size you need let us know as we have numerous displacements available and can help you determine what is best for your needs. The unit has a rated flow requirement of 3.4 gpm, so works well with most standard automotive style pumps. It works well as a replacement for the Eaton unit 211-1049-002, as it is the same mounting, column attachment, and fittings. Hydraulically it is virtually the same, with just a slight increase in displacement (.26 cubic inch).
* 125 cc displacement (7.56 cu. in.)
* 3/8"-16 column mtg. threads.
* Std. 12 tooth involute splined input shaft (Same as Char Lynn and Danfoss)
* Overall height of 5.47" from bottom to column mtg. face.
* Manual steering check valve.
* Load reaction cylinder circuit

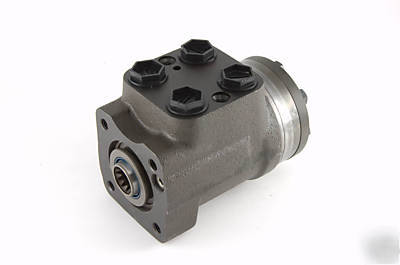

NOTE: Some of these units are unpainted bare metal as shown in photo and some are painted black from the factory. Please specify if it makes a difference to you.
