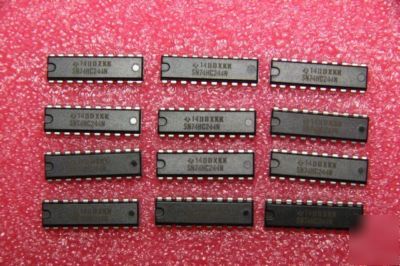

SN74HC244N octal buffer line driver 3 state 74HC244
* High-Current Outputs Drive Up To 15 LSTTL Loads
* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
* Low Power Consumption, 80- A Max ICC
The MAX232 IS a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-Fvoltage levels form a single 5V supply.
Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels.
These receivers have a typical threshold of 1.3V, a typical hysteresis of 0.5V, and can accept 30V inputs.
Each Driver converts TTL/CMOS input levels in to TIA/EIA232-F levels.
The driver, receiver, and voltage-generator functions are available as cells in the Texas instruments LinASIC library.
If you have any questions just ask no question is too dumb!
