Agilent E3649A dual output power supply

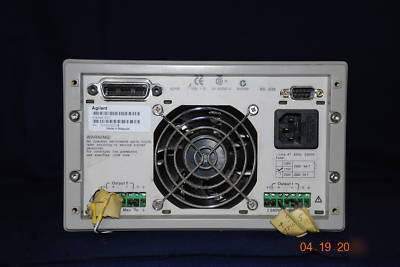

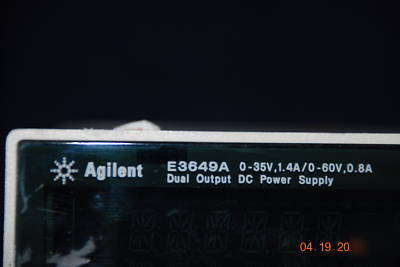

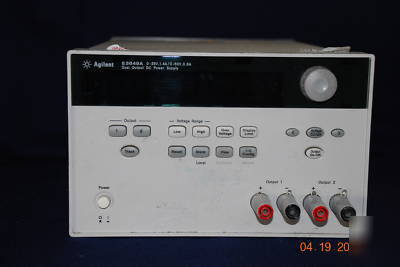

Agilent E3649A Dual Output Power Supply
Agilent basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features with GPIB and RS232 interface. The Agilent 97W, multiple output E3649A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.
Output Ratings (@ 0 C to 40 C) 2 Outputs
* Range 1: 0 to 35 V / 1.4 A
Programming Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Ripple & Noise 20 Hz to 20 MHz
* Normal Mode Voltage: <8 mVpp / 1 mVrms
* Normal Mode Current: <4 mArms
* Common Mode Current: <1.5 uArms
Readback Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
* Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
