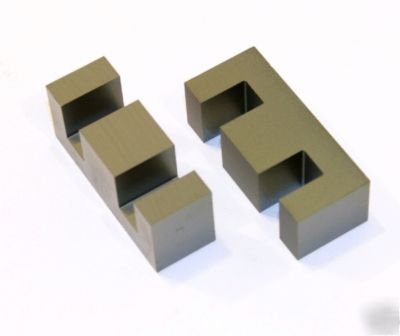

E56 large transformer core, power ferrite, high bsat X4
Dimensions: 56mm x 24mm x 19mm each half.
Magnetic Path length: 10.65 cm
iNDUCTANCE iNDEX (AL): 8820 nH/N^2
Note: Depending on construction, an E56 transformer can produce 1-2KW max power in an SMPS application. Maximizing factors will include a full bridge topology, 100KHz+ operating frequency, and use of triple-insulated winding wire to optimize transformer performance.
Al value: 8902 nH / T^2 +/- 25%,
average of 12 samples from the lot, taken with an Agilent 4275A LCR Analyzer,
