Fluke hv 6.0 kv power supply transformer

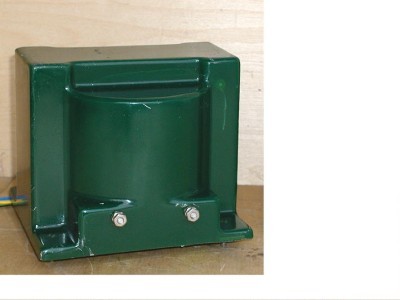

I am offering the commercial grade power transformer mfg. for FLUKE (USA) you see in the photo.
This XFMR was parted-out from a FLUKE 408 A/U 6.0 kV D.C. power supply that operated from 117 VAC @ 60 Hz.
The primary is tapped to select the secondary voltage - see photo. Both windings test good for continuity. Outside of a few scuff marks to the case, this 1961 vintage XFMR is in acceptable cosmetic condition. The power supply rectifier was configured as a voltage doubler using a two 7.5 kV capacitors.
Detailed views - including a resistance measurement - are provided for your inspection.
The Transformer you see in the photo is offered for replacement or experimental purposes, & is what you will be purchasing.
