Leica digicat 100 underground pipe power cable locator

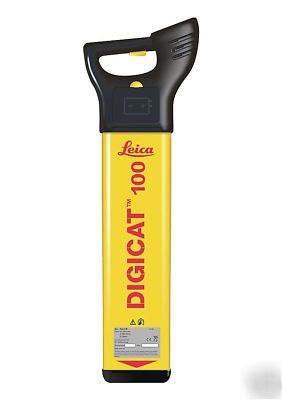

Leica DIGICAT 100 Underground Service Locator
You are looking at a Quality, Brand New, In Box, Leica DIGICAT 100 Underground Service Locator (731047)
* Leica DIGICAT 100 Underground Service Locator
* Leica DIGICAT 100 User Manual
Click the link for an item brochure: http:// /pdf/leica/DIGISystem.pdf With the DIGISYSTEM operators you will be able to locate, trace and mark underground services quickly, precisely and reliably prior to excavation.
Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables.
The DIGISYSTEM product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology.
By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the DIGISYSTEM takes away the need for awkward manual tuning, keeps you safer and locates faster.
The DIGICAT 100 unit is designed to help avoid damage to underground services during excavation and is an easy to operate, fully automatic location system with the ability to manually tune if preferred. Active signal tracing is available by using the DIGI
* Default Power mode selection when turned on, for safety
* Fully automatic sensitivity setting, no adjustments needed
* Audio and visual display of signal reception
* Digital signal processing robust and error free location in the construction environment
* Easy to use requires only minimal training
* Large push button operation speed of use in field conditions
* Robust and waterproof designed for tough working conditions
* Initial self check user has audible and visual indication as to fitness for use
* Always starts in power mode at maximum senstivity ensures safest operating conditions
* Highly visible digital LED display swift service location
Power Mode - Locates power signals radiated by energised cables.
Radio Mode - Traces signals originating from distant radio transmitters. These radio signals penetrate the ground and are reradiated by buried metallic cables and pipes.
* Frequency: Power mode 50/60 Hz, Radio mode 15-30 Hz Generator mode 8 and 33 KHz
* Depth: Power to 3m, Radio to 2m, Generator to 3m
* Protection: Conforms to IP54
* Batteries: 6 x AA alkaline (IEC LR6) (supplied)
* Battery life: 40 hours intermittent use
* Weight: 2.83 kg including batteries
