New bmi dranetz power analyzer 658 w/ probes & case
New BMI DRANETZ POWER ANALYZER 658 w/ Probes & Case

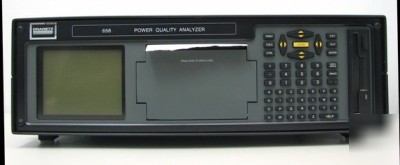

New BMI DRANETZ POWER QUALITY ANALYZER
Why Settle for Surplus or Used
* Manufactured in 1992 and NEVER used
* $24,000 including probes when new
* BMI Dranetz Model 658 Power Quality Analyzer - SerNo LA209302
* Three (3) Current Probes Model # TR2019A - Max ratings 300A 600V RMS
* Four (4) 114890-G1 Alligator Clips (Black) with 114013-G3 Channel Measurement Interconnecting Cable
* Four (4) 114890-G1 Alligator Clips (Red) with 114013-G2 Channel Measurement Interconnecting Cable
* Four (4) 114013-G1 Channel Measurement Interconnecting Cable (Blue)
* One (1) 114015-G1 Single Phase Measurement Cable
* One (1) 113922-G1 Connect to Safety Ground Cable (Green)
* Soft Carry Case with shoulder strap
* Battery probably requires replacement.
* Powers up and appears to be working properly.
* Features and Highlights from the manufacturer (website click here):
* True RMS voltage and current meter
* Scope Mode , Meter Mode
* Event monitor - report by exception
* Menu driven operation
* Harmonics analyzer
* 50/60 and 400Hz monitoring
* Cycle-by-cycle disturbance capture
* Capture multiple transients and complex waveshapes
* 6000 volt impulse auto range
* Simultaneous channel capture
* Graphic summaries
* Zoom in on events
* Transducer inputs
* Built in 3.5" floppy drive
* Dran-View PC analysis and report writer software
