2" adaptive motion EB503SD cnc compression tube bending

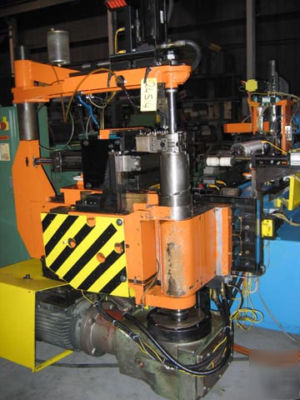

You are looking at a Adaptive Motion Model EB503SD, 5-Axis CNC Compression Type Tube Bending Machine
Serial No. 1.1.001009 New - 1999
Tube Capacity - Maximum 2" OD x .126" Wall
Approximate Overall Dimensions 265"L-R x 86"F-B x 96"H
Approximate Loader Dimensions 285" x 91" x 80" H
Approximate Machine Weight 10,000 Lbs.
Approximate Loader Weight 10,000 Lbs.
24' Haven Model 9318021, Serial No. 5400 Magazine/Loader
AMCS-2.01 5-Axis (C,Y,B,X,Z) CNC Control
In-Line Hydraulic Cut-Off Unit
Pressure and Clamp Die Holders
Trabon Automatic Lubrication System
Motorized Carriage for Plane of Bend and Distance Between Bends
30 HP AC Main (Pump) Drive Motor
Electrical Controls with Baldor Device

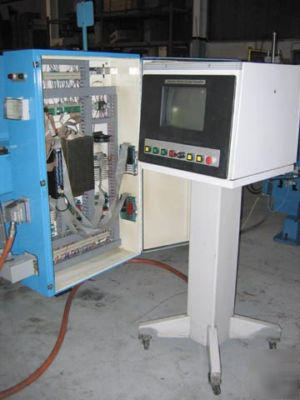

Operator Control Console (Moveable)
*Preliminary Specifications Subject to Verification.
