Advantest R3271 26.5 ghz rf microwave spectrum analyzer
Advantest R3271 26.5 GHz RF Microwave Spectrum Analyzer
Unit has been Lab Verified to be in Working Order
Use the links below to View More Images of the Advantest R3271 100Hz-26.5GHz Spectrum Analyzer

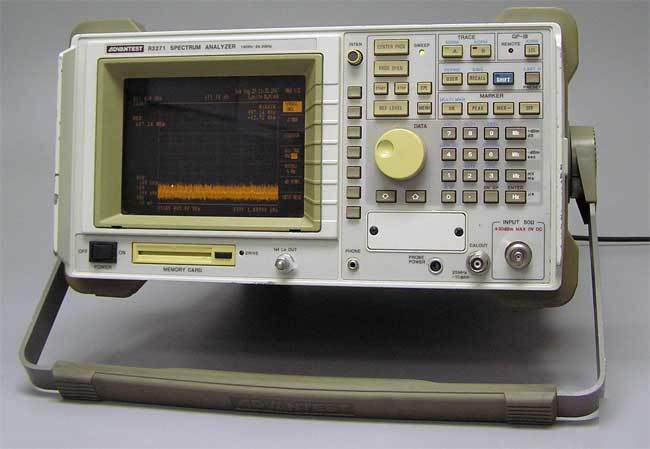

Advantest R3271 Spectrum Analyzer Front Picture
Advantest R3271 Close Up of the Front Panel & Display
Advantest R3271 Spectrum Analyzer CRT Display
Advantest R3271 Spectrum Analyzer Front Control Panel
Advantest 100Hz to 26.5GHz Spectrum Analyzer
The R3271 spectrum analyzer is designed to analyze pulse RF signals used for radar
or to analyze the spectrums of microwaves & quasi-millimetric waves used for satellite
broadcasting, satellite communications or mobile communications. This analyzer
can measure the ultra-broad bandwidth of 100 Hz to 26.5 GHz in one sweep operation. It
can also perform the sweep continuously & repeatedly. A newly developed high-purity
synthesizer enables a high signal purity of -100dBc/Hz (10 kHz offset frequency) in a frequency
band lower than 2.5 GHz. The R3271 spectrum analyzer is thus ideally suited for mobile radio
communications, for which narrower bandwidths & digitalization are being advanced. In the
past, such high-performance equipment was used only for advanced R&D; however this level
of performance is now needed on a commercial level.
* Resolution Bandwidth Steps:
* Single-Side-Band Noise:
* Minimum: -110 dBc/Hz
* Displayed Average Noise:
* (main signal) Type-N(f)
Information gather from the manufacture.
Specifications above may vary slightly from the actual unit pictured
