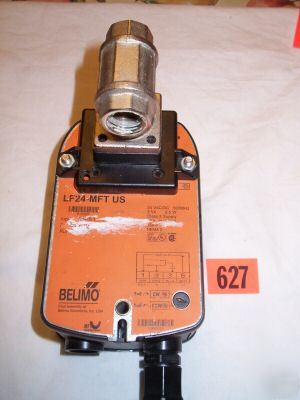

Belimo LF24-mft actuator 2 3 way damper valve motor hva
AC / DC 24 V, modulating, multifunctional, 4 Nm
Running time motor 150 s adjustable
Running time spring-return > 20 s
Control DC 0...10 V (0...32 V)
Operating range DC 2...10 V, adjustable
MP data bus interface integral
Spindle driver universal spindle clamp
Direction of rotation reversible (right/left)
Connection PVC cable length = 1m
Angle of rotation limit. mechanical adjustable
Belimo Valve Actuators feature motors with greater output and less consumption of energy.
Actuators are an integral part of any HVAC system, and Belimo is renowned for its expertise in actuator creation and production.
Damper, Motor, HVAC, 2, 3 way Valve
You can find additional information about this and other belimo products on their website. http://www.belimo.co.uk/CH/EN/Product/Actuators/ProductDetail.cfm?MatNr=LF24-MFT&CatNr=0202010104&&CFID=987322&CFTOKEN=34407916
