Hp/agilent 70909A 26.5 ghzrf section module (reduced )

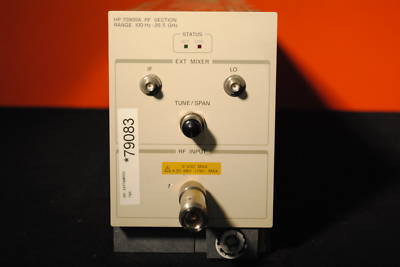

HP Agilent 70909A RF Section Module
The HP Agilent 70909A RF Section Provides Coverage from 100 Hz to 26.5 GHz. This RF Section is Used in the Agilent 71209A Spectrum Analyzer. Diode-Pair Mixing Provides Lower Conversion Loss, Allowing the Spectrum Analyzer to have Sensitivities that Compete with Fundamentally Mixed Designs
* For HP 70000-series Analyzer

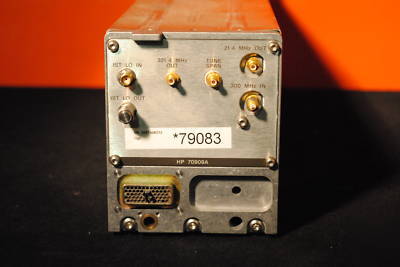

* Rear panel outputs include the 3 to 6.6 GHz.
* Two IF outputs at 321.4 MHz and 21.4 MHz
