John deere 755 loader crawler loader dozer track loader

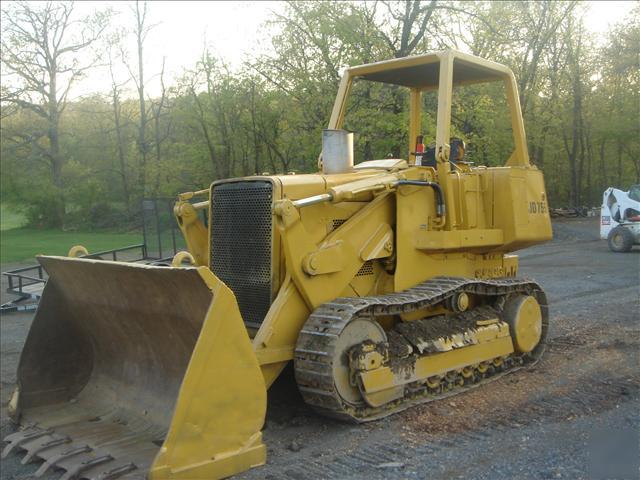

JOHN DEERE 755 LOADER CRAWLER LOADER DOZER TRACK LOADER
More Photos EquipmentStock Number: 234-DSGF-3
Blade, Bucket Type: GENERAL PURPOSE
Operating Weight: 32,001 - 33,000 lbs
THIS UNIT CAME FROM A LOCAL CONTRACTOR THAT NEEDED TO SELL IT DUE TO NO WORK. HIS LOSS YOUR GAIN.
LOADER RUNS AND OPERATES AS IT SHOULD
BUCKET WILL NEED A NEW CUTTING EDGE INSTALLEDAND MUFFLER WILL NEED STACK REPLACED.
ANY QUESTIONS PLEASE CALL EDWARD
755 CRAWLER LOADER 32,005 lb (14 517 kg)
Transport Height.......................................................10 ft 2.6 in. (3.11 m)
Transport Length ......................................................17 ft 9 in. (5.41 m)
Machine Width ..........................................................10 ft (3.05 m)
ENGINE......................................................................John Deere 300 Series
Number of Cylinders and Displacement .............................. 6 cylinders, 414 cu in. (6.8 L)
Air Intake System.................................................................Turbocharged
Bore and Stroke................................................................... 4.19 x 5 in. (106 x 127 mm)
Net hp at 2100 rpm..............................................................110 SAE hp (82 kW) DIN 82 kW
Maximum Torque at 1300 rpm.............................................400 lb-ft (542 N.m)
New ..............................................................................3700 + 50 psi (25 510 + 345 kPa)
Used .............................................................................3500 + 50 psi (24 135 + 345 kPa)
Intake............................................................................ 0.014 in. (0.36 mm)
Exhaust ........................................................................ 0.018 in. (0.46 mm)
Oil Pressure at Fast Idle ......................................................50 15 psi (345 105 kPa)
Static Injection Pump Timing ...............................................Timing lines aligned w/flywheel located at TDC
Dynamic Injection Pump Timing at Rated Load rpm*..........15 + 0 - 1 BTDC
Slow Idle, Disconnect Clutch Engaged.........................975.1000 rpm
Fast Idle, Disconnect Clutch Engaged .........................2275.2300 rpm
Rated Full Load ............................................................2100 rpm
Cylinder Pressure Hot (Min) ................................................350 psi (2415 kPa) cranking with injectors removed
Turbo Boost Pressure at Rated Full Load ...........................9.12 psi (62.83 kPa)
Flywheel Teeth.....................................................................129
Note: *For latest information, see Dealer Technical Assistance Center (DTAC) Solution K000413.
Model and Speeds............................................................... Hydrostatic: variable speed, forward and reverse
Charge Pressure in Neutral .................................................260.340 psi (1795.2345 kPa)
High Pressure Relief (in Forward and Reverse) ..................6100.6500 psi (42 060.44 820 kPa)
Oil Cooler Bypass Valve ...................................................... 40 psi (280 kPa)
Maximum Engine rpm Pulldown ..........................................1800 rpm
Pump Size ........................................................................... 6.88 cu in. (112.7 cm
New .............................................................................. 54 gpm (204.7 L/min) at 2500 psi
Used ............................................................................. 49.5 gpm (187.6 L/min) at 2500 psi
System Relief Valve.............................................................2500 + 175 - 0 psi (17 240 + 1210 - 0 kPa)
Bucket Dump................................................................3000 + 225 - 0 psi (20 685 + 1550 - 0 kPa)
Bucket Rollback............................................................3000 + 225 - 0 psi (20 685 + 1550 - 0 kPa)
Boom Lift ......................................................................3000 + 225 - 0 psi (20 685 + 1550 - 0 kPa)
Auxiliary........................................................................3000 + 225 - 0 psi (20 685 + 1550 - 0 kPa)
CYCLE TIMES (At Fast Idle and Hot Oil)
Boom Raise ......................................................................... 5.0 sec
Bucket Dump ....................................................................... 1.3 sec
Boom Lower (Float) ............................................................. 3.2 sec
See front of this book for the codes [ ].
Cooling System [N] ............................................................ 7 gal 5.8 gal 26.5 L
Crankcase w/ Filter [E]....................................................... 20 qt 16.7 qt 18.9 L
1st Reduction [J] ................................................................ 5.4 gal 5.2 gal 20.3 L
2nd Reduction [J]............................................................... 3.5 gal 2.9 gal 13.2 L
Fuel Tank ............................................................................. 73 gal 60.8 gal 276.3 L
Hydraulic System [C] ........................................................... 37 gal 30.8 gal 140.1 L
Hydrostatic Drives [L]........................................................... 33 gal 27.5 gal 124.9 L
Splitter [M]............................................................................ 1.5 gal 1.3 gal 5.7 L
Contact information Edward Rude
KRIS1@LOADEMUP.NET OR CALL 1-(***)-569-5623
You are responsable to pay the taxes due in your home state if you title the machine. You will not be charged sales tax on any item if you are from out of state. If you are a Md resident you will be subject to 6% sales tax on the purchase price of your Item.
