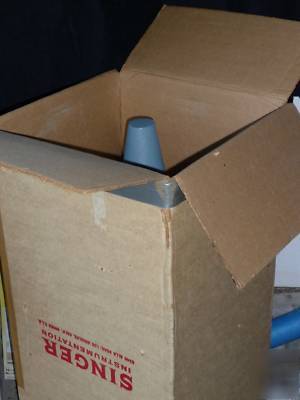

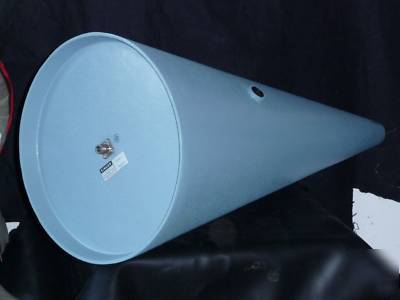

Large conical log-spiral antenna rfi-emi 200MHZ-1GHZ
The Conical Log-Spiral Antenna Model 93490-1 has been developed for use with RFI instrumentation during tests in accordance with MIL-STD-826/461. The antenna has a broadband configuration affording a low VSWR over their complete frequency range. The directional pattern is excellent with respect to back lobe suppression, assuring that interference originating behind the antenna will not affect the test signal under investigation.
Low VSWR over complete frequency range
Directional pattern is excellent with respect to back lobe suppression, assuring that interference originating behind the antenna will not affect the test signal under investigation.
Frequency Range: 200 MHz to 1 GHz
Conforms to U.S.A.F. Drawing: 62J4040
Dimensions: 14 inches dia. x 34 inches long
