Lmi truposition digital probe TP102 true position probe
LMI TRUPOSITION DIGITAL PROBE TP102 TRUE POSITION PROBE
LMI TruPosition Digital Probes
TruPosition Probes with Digital Signal Output
Hole location readings are displayed on (2) LCD display panels within the handle. Readings can then be recorded manually.
Measurements are displayed on (2) LCD display panels. Readings can be easily exported to a data collector using a variety of of interface cables or switch boxes options.

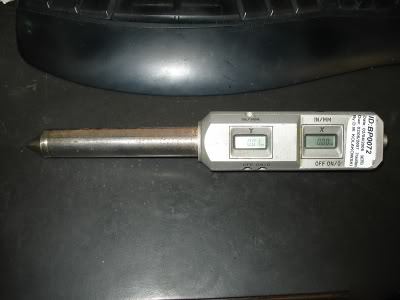

TP102 -TruPosition Probe (shown)
TP103 - TruPosition Probe (shown)
Digital display of A and B axis readings in probe handle.
A .125" /3.17mm diametrical measurement range (.0625" any direction from zero) helps in tool development and setup.
Compatible with most commercial data collectors.
Items included with the TP101 Probe:
Items included with the TP102 Probe:
* #VT2165 Internal Wire Harness
TruPosition TP103 & TP104 Probes
A .236" /6mm diametrical measurement range (.118" any direction from zero) helps in tool development and setup.
Items included with the TP103 Probe:
* VT2165 Internal Wire Harness
Items included with the TP104 Probe:
