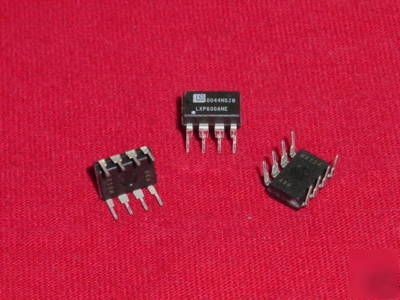

50 pcs. levelone# LXP600ANE, low-jitter clock adap clad
The following item has been listed in our store and is available in larger qty! This item is for 50 pcs. Only!
IC LOW-JITTER CLOCK ADAPTER (CLADs)
The LXP600A, LXP602 and LXP604 Clock Adapters (CLADs) incorporate Level One's pateneted frequency conversion circuitry. The LXP600A and LXP602 convert a 1.544 MHz input clock to a 2.048 MHz output clock, or vice versa. Each CLAD produces two different high frequency output (HFO) clocks for applications which require a higher-than-baud rate backplane or system clock.
LevelOnes patented locking method enables the CLAD to perform frequency conversion with no external components, while generating very little jitter on the output clock. The conversion is digitally controlled so the output clock (CLKO) is as accurate as the input clock (CLKI), and the two clocks are frequency-locked together. When an input frame sync pulse (FSI) is provided, the CLAD also phase-locks CLKI and CLKO together, and locks the output frame sync pulse (FSO) to 600.
- Low output jitter meets AT&T Publication 62411 for 1.544 MHz, and ITU recommendation G.823 for 2.048MHz.
- Digital control of frequency coversion process
- Pin-selectable operation mode
- Advanced CMOS device requires only a single +5 v power supply
- Internatl timing system for channle Banks, Digital Loop Carriers, Multiplexers, Internal Timing Generators, PBX, etc.
- Conversion between 2.048 MHz or 4.096 MHz backplane rates and 1.544 MHz T1 clock rate
- Conversion between North American and International standards (T1/E1 Converter)
