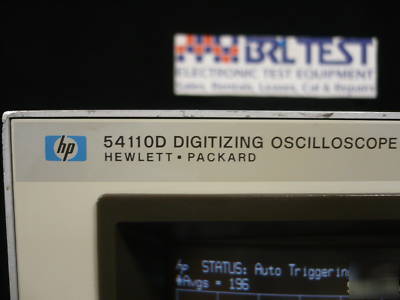

Hp 54110D digital oscilloscope, 1 ghz

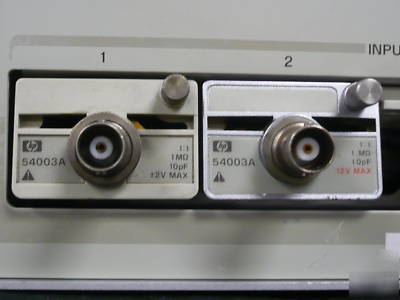

* Unit has 2) HP 54003A Plug-Ins

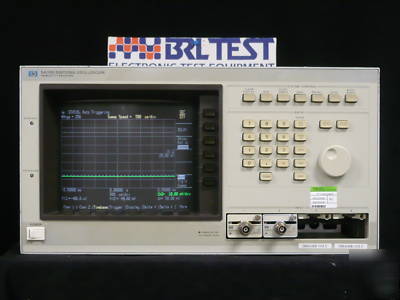

The 54110D is a 1 GHz Digitizing Oscilloscope with two signal channels and two trigger channels. It features random reptitive sampling for viewing rarely occurring narrow waveforms. Time base accuracy is 0.002% with a 10 ps resolution. An extensive set of waveform measurements are built-in and are displayed simultaneously at the bottom of the signal display. Interchangeable input pods permit easy configuration changes to meet any requirement.
Bandwidth: dc to 1.0 GHz Up to 4 input channels Sensitivity: 10 mV/div to 1 V/div Sweep speed: 1 s/div to 100 ps/div Sample rate: 40 MSa/s Min. Vertical Sensitivity 10 mV/div Maximum Vertical Sensitivity 1 V/div Channel to Channel Delay 10 ps Rise time 350 ps Number of Bits 7 bits Digital storage HP-IB interface 115/230 Vac +15% -25%; 48-66 Hz operation Weight: 59 lb; Size: 234 mm (9.22 in)H x 426 mm (16.75 in)W x 641 mm (25.25 in)D
