Konica fc-62C b/w ccd camera w/ mount &transformer 5I
GANZ Konica FC-62C B/W Auto Electronic Iris CCD Camera with Wall Mount and Transformer

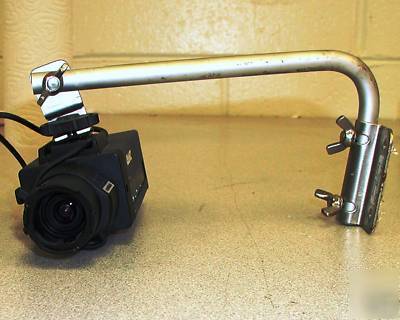

Wall Arm Mount and Transformer included.
* Video Signal System: Monochrome (B&W) / EIA System
* Image Output: 1.0Vp-p / 75ohm
* Scanning System: 2: 1 Interlace
* Resolution: 380 TV lines or more at center
* Image Sensor: 1/3: Interline 270000 pixels CCD
* Effective Picture Element: 537 (H) x 505 (V)
* Scanning Frequency: Horizontal 15.734KHz / Vertical 59.94 Hz
* Sync. System: Internal / linelock (switchable)
* Automatic Gain Control (AGC) automatic
* Auto Electronic Shutter (AES): 1/60 - 1/100,000 linear or 1/60 fixed at AES_OFF (switchable)
* Auto Iris Control: Video iris / DC iris (switchable)
* Backlight Compensation (BLC) Compensation of contrast with highlight slicing
* Power Consumption: 4.0W or less
* Operating Temperature Range: (-10 C ~ 50 C)
* Operating Humidity Range: RH 85% Max
* 110mm(L) x 48mm(H) x 55mm(W)
* 4.33 inches(L) x 1.89(H) x 2.17(W)

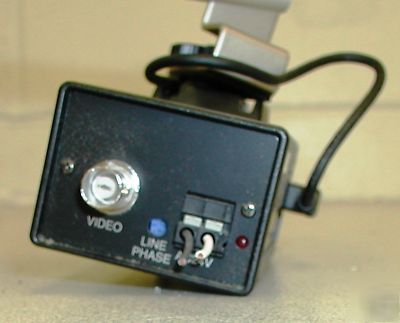

* Connections: Video: BNC / Power: 2 push in terminals (screwless)
* Auto iris output: 4 pin plug
