New hydraulic control valve: parker , motor spool valve

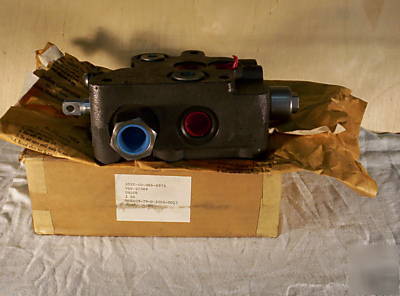

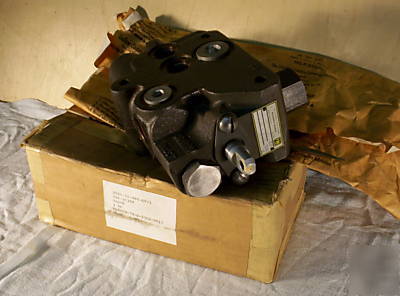

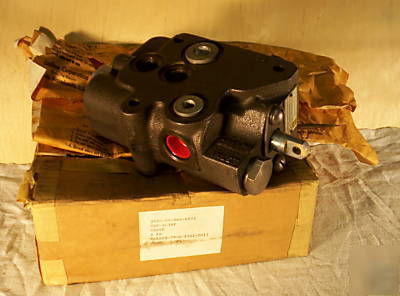

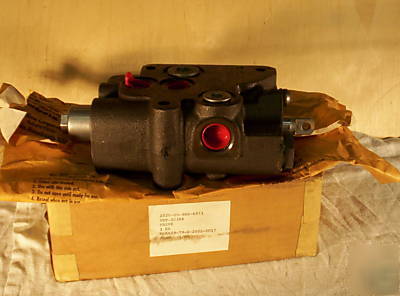

FOR SALE: (1) NEW / UNUSED: PARKER HANNIFIN, SINGLE SPOOL, HYDRAULIC DIRECTIONAL CONTROL VALVE,"MOTOR SPOOL VALVE WITH POWER BEYOND". PACKED IN ORIGINAL BOX. "MADE IN U.S.A."
* PERFECT FOR OPERATING HYDRAULIC WINCHES !!!!, Or Any Other Hydraulic Motor Driven Equipment.
MODEL: VDP2C38P . * UPDATED MODEL NUMBER:VDP12C38P
YOU CAN "LOOK IT UP" @ TYPE IN MODEL: "VDP12 DIRECTIONAL CONTROL VALVE" FOR DETAILED SPECIFICATIONS, AND DIMENSIONAL DATA / DRAWINGS.
"ENBLOCK"TYPE CONSTRUCTION. SINGLE SPOOL, DOUBLE ACTING HYDRAULIC CONTROL VALVE, SERIES: VDP.WITH STANDARD SPRING CENTERED RETURN TO NEUTRAL POSITION. "C" TYPE OPEN CENTERED MOTOR SPOOL , WITH POWER BEYOND FUNCTION.ALSO KNOWN AS HIGH PRESSURE CARRY OVER. (HPCO), BUILT IN ADJUSTABLE, DIRECT ACTING MAIN RELIEF.REMOVABLE PLUGS FOR VARIOUS PORT LOCATION OPTIONS.
FLOW RATE: 25 G.P.M., OPERATING PRESSURE: 2,000 P.S.I., PROOF PRESSURE: 3,000 P.S.I.BURST PRESSURE: 5,000 P.S.I. OPERATING TEMPERATURE: -65*F TO 170*F ADJUSTABLE PRESSURE RELIEF USUALLY FACTORY SET TO: 1,750 P.S.I.
OIL PORTS: HIGH PRESSURE INLET /OUTLETS: 3/4" S.A.E. O-RING. WORKING PORTS: 5/8" S.A.E. O-RING.POWER BEYOND PORT:3/4" S.A.E. O-RING.* PLUGS FOR CERTAIN PORTS CAN BE RELOCATED FOR PIPING PURPOSES.
* VALVES ARE NOT SUPPLIED WITH OPERATING HANDLES. EASY TO FABRICATE YOUR OWN, OR AS SOON AS I KNOW THE PART NUMBER FOR "HANDLE KITS",I WILL PASS THE PART NUMBER ALONG.
THESE VALVES WOULD BE OF INTEREST FOR ANYONE OPERATING HYDRAULICALLY MOTOR DRIVEN EQUIPMENT. SUCH AS WINCHES, AND MOST ANY TYPE OF: ROTATING AGRICULTURAL, LOGGING, FISHING, OIL FIELD, OR CONSTRUCTION EQUIPENT.
*THESE ARE PRIMARILY MOTOR SPOOL VALVES. SOME MAY SUGGEST THAT THEY MAY BE SUITABLE FOR USE IN CERTAIN HYDRAULIC CYLINDER APPLICATIONS WITH THE USE OF LOCK VALVES, AND THEY MAY BE CORRECT.
*BE ADVISED THAT WITH THE USE OF AN OPEN CENTERED CONTROL VALVE THERE IS NOTHING TO PREVENT THE CYLINDER FROM CREEPING / LOWERING WHEN THE VALVE IS RETURNED TO THE CENTER POSITION.
* ALWAYS CONSULT YOUR LOCAL HYDRAULICS EXPERT FOR ADVISE WHEN USING THESE TYPES OF VALVES FOR USE WITH HYDRAULIC CYLINDERS.
ORIGINAL PACKING SLIPS PROVIDED WITH THESE VALVES INDICATE AN ORIGINAL COST OF; $ 597.00 EACH.
WE HAVE MANY OTHER NEW HYDRAULIC CYLINDERS, AND RELATED EQUIPMENT LISTED.PLEASE BE SURE AND TAKE A LOOK.
GOOD LUCK, AND HAPPY SHOPPING.
