X5 LM324D LM324 324 quad op-amp SO14

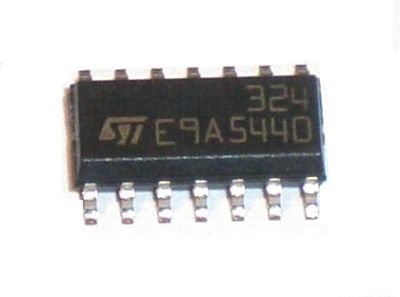

A pack of five LM324D ICs, in SO14. ("ST")
LOW POWER QUAD OPERATIONAL AMPLIFIERS
* WIDE GAIN BANDWIDTH : 1.3MHz
* INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GROUND
* LARGE VOLTAGE GAIN : 100dB
* VERY LOW SUPPLY CURRENT/AMPLI : 375uA
* LOW INPUT BIAS CURRENT : 20nA
* LOW INPUT OFFSET VOLTAGE : 5mV max.
(for more accurate applications, use the equivalent parts LM124A-LM224A-LM324A which feature 3mV max.)
* LOW INPUT OFFSET CURRENT : 2nA
* SINGLE SUPPLY : +3V TO +30V
* DUAL SUPPLIES : 1.5V TO 15V
These circuits consist of four independent, high gain, internally frequency compensated operational amplifiers. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
