1999 regent 16" x 40" auto 3 axis hyd. surface grinder

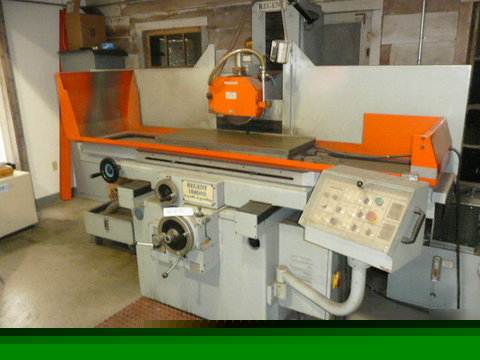

1999 REGENT 16" x 40" AUTO 3 AXIS HYD. SURFACE GRINDER
16" X 40" REGENT HYDRAULIC SURFACE GRINDER
MODEL: SGS-1640AHD S/N: 8915021 NEW: 1999
MAX. GRINDING CAPACITY .................... 16" X 40"
DIST. FROM SPINDLE CENTER TO TABLE .......... 27- 1/2"
LONGITUDINAL TABLE TRAVEL ................... 44"
CROSS TRAVEL ................................ 17- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ............. 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ............... 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ................... 35" IPM
AUTO INCREMENTAL DOWNFEED ................... 0.001" TO .0001"
DOWNFEED HANDWHEEL PER GRADUATION ........... 0.00005"
MAXIMUM TOTAL DOWN FEED INCREMENT............ 2"
NUMBER OF PRE-SELECTABLE SPARKOUT PASSES:.... 0-9
PER REVOLUTION .............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION .......... 0.001"
PER REVOLUTION ............. ................ 0.2"
SPINDLE MOTOR ............................... 7.5 H.P.
STANDARD GRINDING WHEEL ..................... 12" DIA.X 2" WIDE X 3" BORE
APPROX. WEIGHT .............................. 8,200 LBS
Infinitely variable cross feed of saddle achieved through
Automatic incremental down feed of grinding wheelhead from
0.001" to 0.0001" in surface or plunge modes of
operation. The table stops on the right side
Wheelhead rapid approach to work piece by push button
Saddle lock for grinding of slots or other forms
Longitudinal and cross slide ways lined with Turcite B
16" x 40" KANETSU Ultra Fine-Division "LBP"
Over-the-wheel parallel wheel dresser
External hydraulic pump and tank
7.5 H.P. spindle drive motor and electrical controls
** ORIGINAL PAINT; EXCEPTIONAL CONDITION **
