Fusetron--dual-element time delay---frs-r-2-8/10---

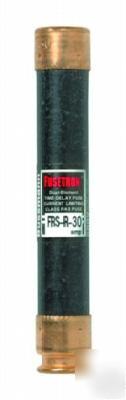

NEW!! FUSETRON- Dual-Element Time Delay- FRS-R-2-8/10 Decription: Dual-element, time-delay fuse 10 seconds (minimum) at 500% rated amps. Construction: Fiberglass tube. Ratings: Volts 600Vac (or less) 300Vdc Amps 1/10-600A IR 200,000A RMS Sym. 20,000A @ 300Vdc Agency Information: CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787. Features and Benefits: * 2:1 selective coordination ratio (within RK5 fuse family) prevents electrical shutdowns from extending beyond the failed circuit. * Insulated end caps for 70-600A fuses reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing. Typical Applications: * Power Panelboards * Motor Control Centers * Combination Starters * Machinery
