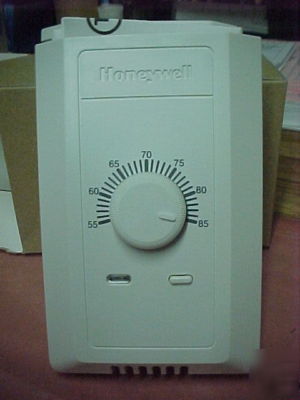

Honeywell T7770C1002 non-linear temperature wall module
HONEYWELL T7770C1002 Non-linear Temperature Wall Module
20 K ohm NTC non-linear Temperature Wall Module
Application Networked Sensor
Sensor Type 20 K ohm NTC non-linear
Mounting Mounted on a standard 2 x 4 inch junction box or on a 60 mm diameter junction box.
Operating Humidity Range (% RH) 5 to 95% RH, non-condensing
Setpoint Temperature Range (F) 55 F to 85 F
Operating Temperature Range (F) 45 F to 99 F
Operating Temperature Range (C) 7 C to 37 C
Dimensions (in.) 5 1/32 in. high x 3 5/32 in. wide x 1 in. deep
Dimensions (mm) 128 mm high x 80 mm wide x 25 mm deep
Approvals, Underwriters Laboratories Inc Listed: 916 Energy Management Standard
Approvals, Canadian Standards Association Listed
Includes Setpoint adjustment, LonWorks Bus connection and occupied/unoccupied override, LED, Lennox logo.
Used With Excel 600, 500, 100 and Excel 10, 15 Series Controllers
