Johnson control M100 proportional motor damper actuator
JOHNSON CONTROL M100 PROPORTIONAL MOTOR DAMPER ACTUATOR

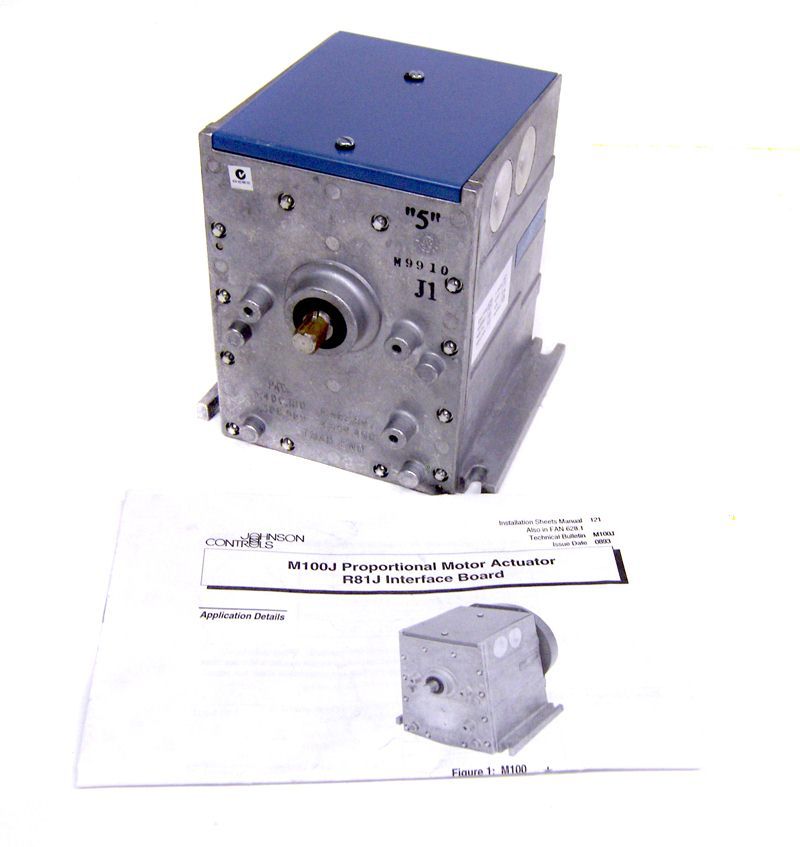

Johnson Controls Proportional Motor / Damper Actuator
Includes Installation Manual
The M100J Series Motor Actuators are used in damper and valve
applications where proportional 3-wire 135 to 1000 ohm potentiometer,
6 to 10 VDC active (0 to +24 VDC) or a Johnson Controls 0 to -2 VDC
electronic controller input signal is required.
The M100J may be wired in parallel for multiple actuator installations or
used as slave actuators with other s.
The M100J Series Motor Actuator may also be used in several overide
control applications such as high or low limit, minimum damper position
or for hot water temperature reset
