Keptel cg-1000 wisp coax cable tv demarc nid enclosure

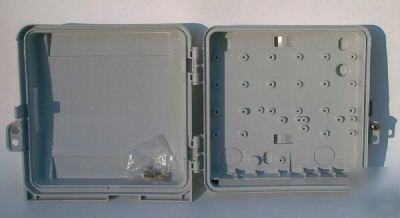

Keptel CG-1000 Network Interface Device (NID) Enclosure Box
Broadband / CATV / WISP Demarcation Enclosure
* Provides a secure single compartment for broadband/CATV/Wireless Internet equipment such as radios, terminating coax, and mounting any combination of splitters, ground blocks, input/output, and jumper modules.
* The organized mounting arrangements not only create a standardized method for high quality drop installations, but also allow future expandability for broadband equipment. Organized internal mounting bosses create a standardized mounting arrangement and allow for proper bend radius of coax cable up to RG-6
* The weather-resistant/high-impact thermoplastic housing and wire entrance grommet materials used in the enclosure are fire retardant, UV stabilized and resist degradation from environmental contaminants, chemical fertilizers and insecticide sprays.
* The self-latching hinged cover design allows easy access without loose parts
* The self-sealing individual entrance ports prevent water and insects from entering.
* Housing can be painted with latex or oil base paints.
* Nominal dimensions: 9 x 9 x 3 inches
* Inside dimensions: 8 x 7-3/4x 1-5/8 inches
The useable inside dimensions are 8 x 7-3/4x 1-5/8 inches. (Due to internal mounting bosses, the inside can acommodate some protrusion beyond this dimension, but it would depend upon the location.)
