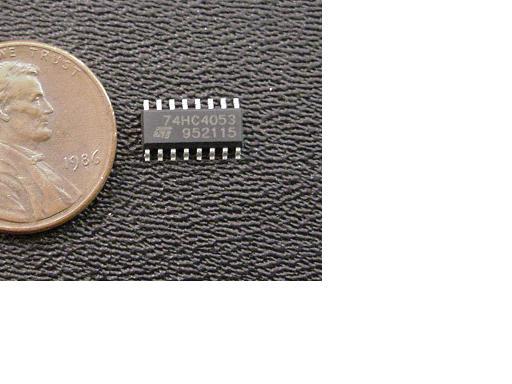

M 74HC4053 M1R analog multiplexer/demultiplex lot of 50
A built-in level shifting is included to allow them an input range of up to +/- 6V(peak) for an analog signal with digital control signal of 0 to 6V.
VEE supply pin is provided for analog input signals. They have an inhibit (INH) input terminal to disable all the switcheswhen high. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND.
* Low power Dissipation [ICC = 4 uA (Max.) at TA = 25 Degrees C]
* Logic Level Translation to Enable 5V Logic Signal to Communicate with +/-5V Analog Signal
* Low ON Resistance: 70 Ohms Typ. (VCC - VEE = 4.5 V) 50 Ohms Typ. (VCC - VEE= 9 V)
* Wide Analog Input Voltage Range: +/-6V
* Fast Switching: tpd = 15 ns (Typ.) at TA = 25 Degrees C
* Low Cross Talk Between Switches
* High On/Off Output Voltage Ratio
* Wide Operating Voltage Range (VCC - VEE) = 2V TO 12V
* Low Sine Wave Distortion 0.02% AT VCC - VEE = 9V
* High Noise Immunity VNIH= VNIL= 28% VCC (Min.)
* Pin abd Function Compatible with HCC/HCF4051/4052/4053B
* The HC4053 is a triple two channel multiplexer demultiplexer having three separate digital control inputs A, B and C to select independently one of a pair of channels.
FYI, one of these parts currently sells for $0.83 at Mouser.
Listing is for a LOT of 50 pcs.
