New national pxi-gpib high-performance controller ieee

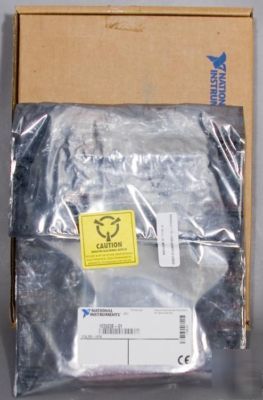

NEW National Instruments PXI-GPIB 488.2 High Performance GPIB Controller
List Price is: $549.00 from National Instruments.
Description: PXI-GPIB, NI-488.2 For Win 2000, Rev: 004
* Card Part Number: 183923E-01, CCA, PXI-GPIB
* NI-488.2 For Windows, Version: 1.70, July 2000 Part Number: 777175H-01
Link to the Datasheet: National Instruments GPIB Interfaces Cards Datasheet
Link to the Manual: National Instruments GPIB Interfaces Cards Manual
* NI custom TNT ASIC provides maximum IEEE 488.2 performance
* NI-488.2 for Windows Vista (32- and 64-bit)/XP/2000/Me/9x/NT
* 1.5 MB/s maximum transfer rate using IEEE 488.1 handshake
* 7.7 MB/s maximum transfer rate using HS488
* Plug-and-play capability for easy hardware installation
The NI PXI-GPIB is a low-cost, high-performance IEEE 488 controller module for PXI. With a custom NI TNT ASIC, this controller achieves maximum IEEE 488.2 transfer rates of 7.7 MB/s using HS488 and 1.5 MB/s using the IEEE 488.1 handshake.
Operating System / Target: Windows, Real-Time, Unix
GPIB Standard Compatibility: IEEE 488, IEEE 488.1, IEEE 488.2, HS488
Onboard GPIB ASIC Chip: TNT5004
Port Information Specifications:
Maximum Transfer Rate (IEEE 488.1): 1.5 MB/s
Maximum Transfer Rate (HS488): 7.7 MB/s
I/O FIFO Buffer Size: 32 B, 64 B Maximum Device Connections / Port: 14
Power Requirement Specifications:
I/O COnnector: 24-pin IEEE 488
Operating Temperature: 0 - 55 C
