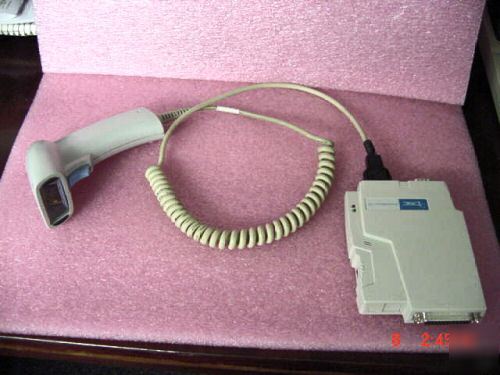

Psc powerwedge 10 keyboard & snapshot bar code scanner

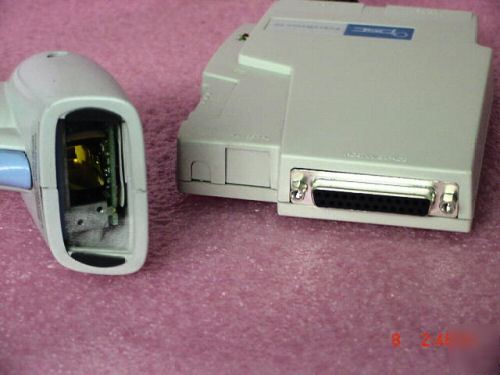

The PowerWedge 10, 20 & Mini Decoder line offers many features and benefits including a smaller footprint optimized performance added symbologies improved trigger modes and backward compatibility with all current decoder cables and settings. A cloning feature enables the user to program multiple units in seconds from a single master unit. Designed to meet the tightest space requirements the Mini PowerWedge measures 2.75 inches wide by 3.25 inches long by 0.75 inches high and weighs 2.3 ounces. It is a Keyboard Wedge Decoder featuring a single 9-pin squeeze-style connector and a 25-pin interface connector that supports a variety of popular interfaces including IBM PC/AT/XT PS-2 and Macintosh computers as well as many terminals.
Designed for basic bar code needs, the PowerWedge
10 is available in either serial or keyboard wedge
models. Keyboard interfaces include IBM PC/AT/XT/,
PS/2, Macintosh and select terminals.
The PowerWedge 10/20 are programmed using
either a bar code menu, bar code batch label, serial
batch label, or interactive on-screen menu. Its unique
cloning feature enables you to program multiple units
in seconds from a single master unit. An auto-learn
feature automatically programs the type and length of
each bar code as it is scanned, and extensive
programmability allows you to auto-discriminate among
16 bar code symbologies and up to two magnetic stripe
Most input devices wands, 5V lasers, CCDs, ID
badge scanners, and magnetic stripe readers can be
used with the PowerWedge 10/20 decoder. Input
device and magnetic stripe connectors are conveniently
located on the front of the decoder for quick and easy
You ll find the PowerWedge 10/20 easy to install
and simple to use, consistently providing you with
reliable, cost-effective performance.
The SnapShot is a lightweight, yet rugged bar code scanner. It is simple to use: just point the scanning window at a bar code and press the trigger. A red light emitting diode (LED) on the top of the SnapShot indicates when the SnapShot is scanning, and a green LED indicates when a scan is successful.

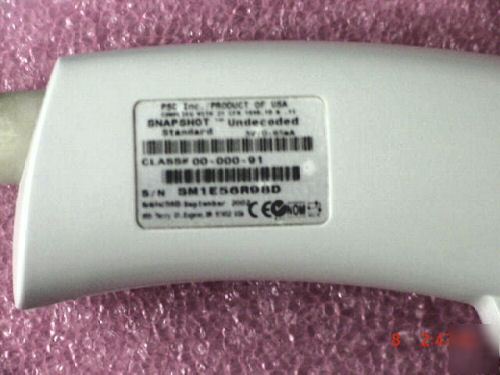

SnapShot is available as a decoded or undecoded scanner. Decoded models can be connected to any supported PC or terminal as either a keyboard wedge or a serial device. Undecoded models must be used with PSC PowerWedge fixed station decoder (or similar decoders) or with portable data-collection terminals (such as the PSC PT 2000).
Set minimum/maximum lengths for
Convert UPC-E bar codes to UPC-A
Enable/disable checksum and check
Enable/disable UPC system digit, and
check digit, and EAN/JAN country
Add intercharacter delay check
Add CCD/laser redundancy check
Change upper case to lower case
Enable/disable the programming
+32 to +122 F (0 to +50 C)
5% to 95% relative humidity (noncondensing)
Complies with FCC Class A radio
frequency emission requirements
Keyboard wedge IBM PC/XT/AT,
PS/2, Macintosh, and other popular
(Interface cables, input devices and power
supplies must be ordered separately.)
Input One: 9-pin squeeze-style connector
wand, 5-volt laser, CCD, ID Badge
Input Two: 9-pin squeeze-style connector
Up to two tracks magnetic stripe
Cloning (requires special cable)
Enable/disable each magnetic stripe
Add user-defined preamble/postamble
to each magnetic stripe channel
Indicate magnetic stripe type
Adjustable bits, parity, stop
Host-supplied voltage: 5V 10%
