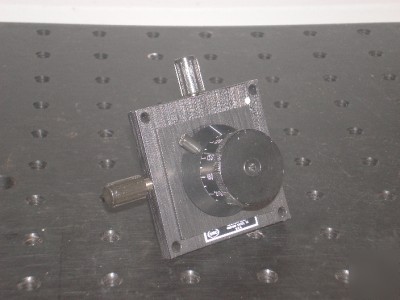

New port / nrc fpr-1 fiber optic positioner
NRC (Newport Research Corp.) FPR-1 Fiber Optic Positioner, XYZ z, Bare, FPH-S, FPH-J, or FPH-DJ, 25.4mm Axis
FP Series Fiber Optic Positioners provide three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers. Smooth adjustment with increased sensitivity are enabled by high-resolution 100 TPI adjustment screws and large diameter knobs with an integral hex hole.
Bare fibers are positioned using FP-1A or FP-2A. Models FPR-1A and FPR-2A add rotation about the fiber axis for aligning bare polarization-preserving fibers. Connectorized standard or polarization-preserving fibers are positioned with FPR1-C1A or FPR2-C1A. Fibers are aligned in three axes (XYZ) using FP-1A, FPR-1A, or FPR1-C1A, and in five axes (XYZ X Y) using FP-2A, FPR-2A, or FPR2-C1A. Axial Z motion is accomplished without rotation of the fiber by a knurled knob with a precision 80 TPI thread.
Models FP-1A, FP-2A, FPR-1A, and FPR-2A include a position lock for the XY axes. FPR1-C1A and FPR2-C1A incorporate our new zero-freeplay XY mechanism ensuring accurate positioning and enhanced long-term stability, reducing drift over both time and temperature. Independent locks for each axis of translation and rotation securely lock the mechanism, not just the actuator screws, maintaining stable alignment. Engaging or disengaging each lock on these models has negligible influence on the other axes.
for new Newport FPR - 1a: $381.48
