New robinair 6 cfm 2 stage vacuum pump 15600 +1QT oil

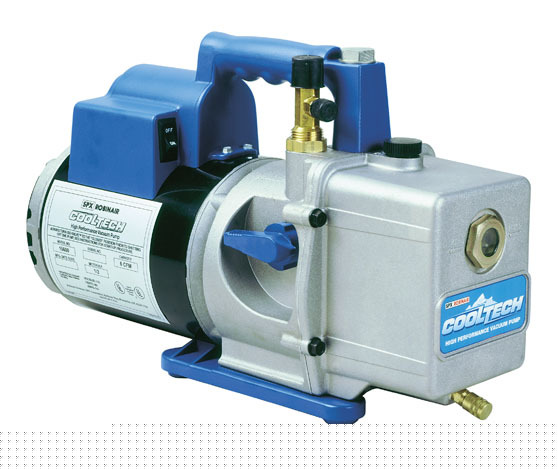

NEW Robinair 6 CFM 2 Stage Vacuum Pump 15600 +1QT OIL
ALSO INCLUDES 1 QUART ROBINAIR PREMIUM HIG VACUUM PUMP OIL WHEN PURCHASED.
* Gas ballast keeps oil clean and dry
* Inlet feature prevents pump contamination
* No-hassle over-the-counter replacement warranty.
The Robinair 15600 CoolTech 6CFM vacuum pump thoroughly evacuate today's tighter systems with their increased sensitivity to contaminants.
Iso-ValveTM isolates pump from system, making it easy to measure rate of rise
Offset rotary vanes work in conjunction with the vacuum pump oil to create a powerful compression inside the pumping chamber
Vacuum pump efficiency depends largely on the purity of the vacuum pump oil. The gas ballast feature helps keep the oil clean for a longer time by introducing a small amount of dry atmostpheric air to prevent condensation of moisture within the pumping chamber.
Two stage design for greater efficiency the second stage of the two-stage design starts pumping at a lower pressure to pull a deeper ultimate vacuum.
* The inlet filter prevents contaminants from entering the pumping chamber; check valve prevents oil from backing up into system during a power outage.
* Heavy duty motor is easy to start and efficient to operate.
* The power switch is located on the handle assemblyto protect it from accidentally being turned on or off.
* Sure grip handle stays cool to the touch and directs exhaust away from you.
Minimum Cold Start Temperature 32 F (0 C).
Intake Fitting " ACME and " MFL.
Free Air Displacement 6 CFM.
Dimensions 55/8" W x 9 " H x 15" L (14.25 cm x 24.7 cm x 38.1 cm).
Oil Capacity 15 oz. (445 ml).
Voltage 115V 60 Hz. Motor Size 1/2 HP.
Factory Micron Rating 20 Microns.
