#6920 - huffman hs-87R cnc tool & cutter grinder

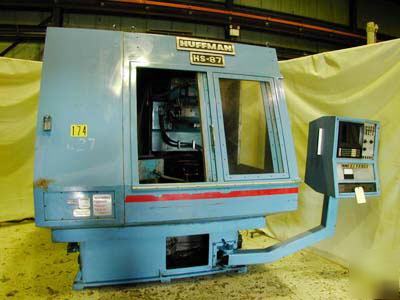

HUFFMAN MODEL HS-87R 7-AXIS CNC TOOL & CUTTER GRINDER
Maximum flute length (ball nose) 8"
Maximum cutter diameter (arbor style) 10"
Maximum cutter diameter (through work spindle) 3"
A-Rotary work spindle 360 deg.
Wheel spindle speed (standard) 4500 RPM
Floor area (machine & controls L-R x F-B) 183" x 204"
Floorline to center of workholder 56"
Allen Bradley 7320C470 CNC controls swivel pedestal mounted
SH-10-PE-H Smog hog mist collector air cleaner
2" Thick cold rolled steel mounting plate with leveling bolts
