Cnc router engraver 3 axis mill machine build plans
Rockcliff Machine Inc. CNC Plans
We are a Machine Design Business with 2 decades of DIY CNC knowledge, our machine plans are designed to be built with a minimum amount of parts and cost, and have been fully tested, by us, and built by more people worldwide then any other cnc machine plan today.

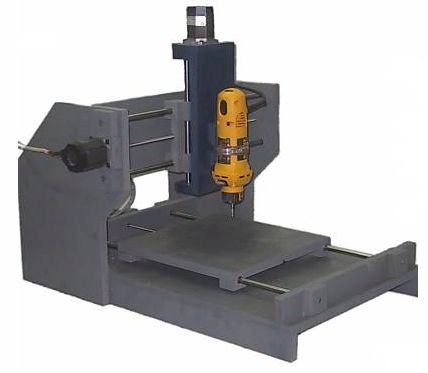

Rockcliff Router Base Model Rockcliff Router Model D 36 x 24
Easy to build using only standard woodworking tools and can be used with vitually all rotary tools like Dremel, Rotozip, Dewalt Freud, Bosch, Porter Cable, Makita, Laminate Trim Routers, etc. and the great thing about our designs is they are based on real full size machines so you will not be limited like a compucarve, our machine designs will even CNC cut threads like a real milling machine.
Rockcliff Machine Inc. has been involved in the machine design/building business for over 25 years. We are real OEM Automated Machine Manufacturer that designs and builds machines for new car production. Our plans provide you with the knowledge to make building your own CNC Machine easy, affordable and correct the first time.
RC Plastic PartThe machine, featured in this video clip is the base model it was constructed using the lowest cost wood, and most of the parts were glued together. It can be built, very easily, using standard, at home woodworking tools, and has been special designed to be made from almost any material, like, wood, Baltic birch, pine, plywood mdf, plastic, and even aluminum, As demonstrated, this base model will achieve full 3 axis 3D cutting results right from your PC and your artwork. Rockcliff CNC Router Plans have a proven track record. You can create many parts with a CNC router in your home workshop or business - great for making almost anything, signs, 3D letters, radio-controlled RC planes, cars, and boat parts, business products, jewelry molds, toys, robots, PCB mill circuit boards, It will engrave plaques, carve wood guitar bodies and necks, cabinet moldings, emblems, 3D printing, and much more. Successfully built and used by hundreds worldwide, it's performance is amazing for such a low cost, if you use our low cost motors and controller the base model can be built for around $500 more or less depending on what quality of parts you decide to use.
NO Drill Fixture's Simple is Always Best
We also include our General Guide to Understanding DIY CNC Machine Building
Contents Include: INTRODUCTION How to Select The Correct CNC Router Flying Gantry Fixed Gantry Open Table Closed Table Selecting a Linear Bearing Style Linear Bearings Supported Linear Bearing Unsupported Linear Bearing How to make DIY Linear Bearing What are the different Z Axis Slide Designs Fixed Motor Design Moving Motor Design Motors For CNC Stepper Motors Types of Stepper Motors How to Select and Identify Stepper Motors Hybrid Bipolar Stepper Motors Unipolar Stepper Motors. Stepper Motor Frame Sizes NEMA 17 NEMA 23 NEMA 34 Connecting Stepper Motors Series Connected Parallel Connected What is Motor Resonance What is Motor Inductance Why Sizing a Motor is important Servo Motors What is a Lead Screw and How to Select the Correct One Resolution Accuracy Lead Screw and Pitch Lead Nuts UN Threads Acme Screws Ball Screws Double Start Threads All thread Anti-backlash and much more.
We know everyone has different needs, that's why we include some different versions to select from like our open table design, which is able to accommodate almost any size material, and with great features like moving motor Z , and our use of an arsenal of professional CAD software packages like AutoCAD and SolidWorks you know your getting high quality design,
Designed For Worldwide Fabrication We include Both Imperial and Metric Machine Drawings, Our Plans are used in many countries including USA, Canada, Mexico, UK, Australia, Italy, Germany, Japan, France, Spain, Africa, New Zealand, Netherlands, Norway
Extreme High Quality 3D Detail
Cut on Base Model Machine, the detail of this CNC carving speaks for itself !
