Intersil HC55185EVAL1 rev a evaluation platform

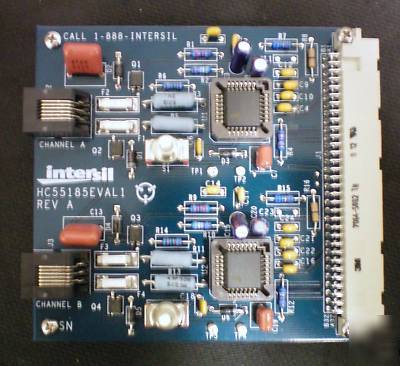

Evaluation Platform / Daughter Board
The HC55185EVAL1 evaluation board is optimized to match either a 600
or a 200 + 680 ||0.1 F line impedances, have a Ring Trip Threshold of 76mA, a Switch Hook Threshold of 12mA, Loop Current Limit of 24.6mA and a Transient Current Limit of 95mA.
The daughter board is a dual channel board that enables testing between adjacent channels (CH1 to CH2, CH3 to CH4, CH5 to CH6, and CH7 to CH8). An additional daughter board can be obtained to enable testing between all channels. Reference the application note AN9998 for calculation of external components and programming coefficients.
For more information please visit:
http:// /data/an/an1003.pdf
Item is used but in good physical condition.
