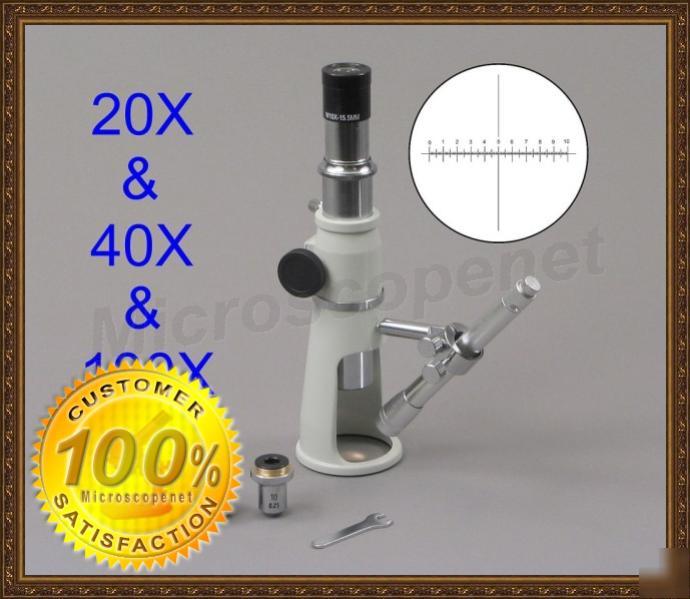

New 20X 40X 100X portable shop measuring microscope
Monocular Compound Microscopes
Binocular Compound Microscopes
Trinocular Compound Microscopes
Multi-viewing Compound Microscopes
Multi-power Binocular Microscopes
Multi-power Trinocular Microscopes
Zoom Stereo Binocular Microscopes
Zoom Stereo Trinocular Microscopes
Stereo Microscopes with Camera
Stereo Microscopes with Boom Stands
Stereo Microscopes with LED Illuminators
Stereo Microscopes with External Lights
Compound Microscopes with LED Illuminator
Compound Microscopes with Cameras
Binocular Loupes and Headlights
USB Video Cameras for Microscopes
Illuminators for Stereo Microscopes
Camera Adaptors for Microscopes
Jewel Tweezers for Microscopes
Mechanical and Thermal Stages of Microscopes
Portable Shop Measuring Microscope
Find it later under "Favorites" menu in your browser.
* Total magnification: 20x, or 40x, or 100x
* Objectives: 2x, 4x and 10x
* Eyepiece: W10X/15.5mm with cross reticle
* Division of reticle: 20x @ 50um (1/20 mm), 40x @ 25um (1/40 mm), 100x @10um (1/100 mm)
* Diameter of bearing place: 63mm (2-1/2")
* Total height: 240mm (9-1/2")
* Working distance: 20x @15mm (9/16"),40x @16.5mm (5/8"), 100x @ 7.5mm (5/16")
* Field of view: 20x @ 8.5mm, 40x @4.2mm, 100x @1.8mm
* Focusing adjustment range (stroke) 32mm (1-1/4")
* Illustration: penlight (2 AAA batteries not included)
* Material: alloy and optical glass lenses
* Net weight: 1 lb 8 oz (0.7kg)
* Product GS and CE approved
* Manufacturer in business 30+ years
* Portable measuring microscope
* W10X/15.5mm eyepiece with cross reticle
* Penlight (2 AAA batteries not included)
Optional Parts and Accessories (sold separately):
* CCD camera (electronic eyepiece) for computer hook up
Note: Before you purchase any parts or accessories, please check the Compatibility Table below.
Click the above button to view all accessories for this product M51B
