New cambridge technology 6230H scanning galvanometer
Model 6230H Moving Magnet Closed Loop Galvanometer Based Optical Scanner
The 6230H galvanometer can be designed and optimized for speed, size, cost and accuracy with typical beam diameters of 8mm, 10mm, 12mm, and 15mm. It is shown here with a 10mm Y mirror.
All Position Detector specifications apply with Cambridge Technology servo driver after a 30 second warm-up. All angles are in mechanical degrees. Consult manual for complete operating instructions.
Electrical Specifications/Drive Mechanism
7.1 Amperes at Tcase of 50 C, Max
Small Angle Step Response Time:
250 s, with 8mm Y Mirror, settled to 99% 250 s, with 10mm Y mirror, settled to 99%
99.9 %, Minimum, over 20 degrees, 99.5% Typical, over 40 degrees
155 A with AGC current of 30mA, +/-20%
Output Signal, Differential Mode:
11.7 A/ , at common mode current of 155 A, +/-20%

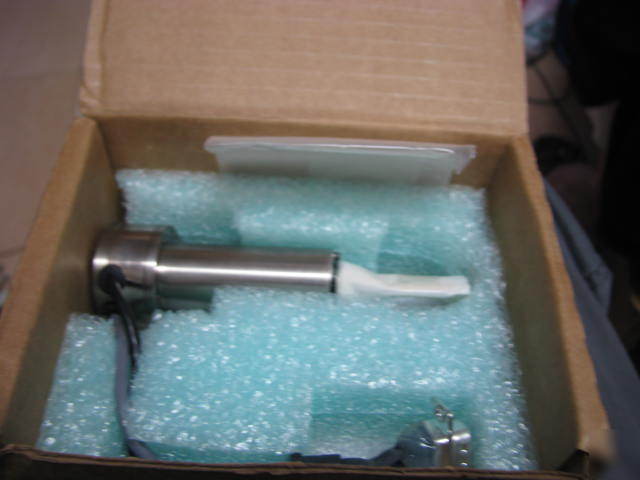

New in box, with the control board
