New mid-west instrument model 106TE-14-mo

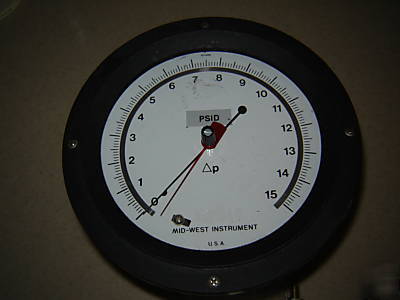

Mid-West Instrument model 106TE-14-MO. New. 6 inch gauge face
* Pressurized Tank Level Monitoring
* Stationary Tanks - Horizontal or Vertical
* Filter Monitoring for Gases
* Over-Range Protection, High over Low and Low over High
* Wide Selection of DP Ranges & Scales
* Bellows or Multiple Diaphragm Sensing Element
* Working Pressures up to 6000 PSIG (400 bar)
* Gauge Housings available in Aluminum, Brass, Carbon Steel and Stainless Steel 316/316L
* Dry Design, No Liquid Fill Required for Over-range Protection
* Glass Reinforced Thermoplastic Gauge Front Is Standard
* Weather Resistant & Corrosion Resistant Gauge Front
* Differential Pressure Range 0-80" H2O to 0-400" H2O (or Equivalent) Uni-Directional or Bi-Directional
* Accuracy 1% F.S. Standard, 1/2% F.S. Optional
* Dial Size 6" (Standard), 4-1/2" (Optional)
* Working Pressure up to 6000 PSIG (400 bar)
* Material of Construction Body Aluminum, Brass, Carbon Steel, 316/316L Stainless Steel
* Materials of Construction - Internals Copper Alloy or Stainless Steel
* 10 AMP @ 30 VDC, 120/240 VAC
* Adjustable from 5 to 95% F.S.
* Electrical Enclosures Weather-proof or Explosion-proof
* Over-range Protection Full to Maximum Working Pressure
* Anti-Parallax Dials Furnished on Standard Range 6" Dials
* Panel Mounting Standard, Front or Panel 6" or 4-1/2"
* Pipe Mounting Kit Optional, 2" U-Bolt
* Wall Mounting Optional - Flush Panel or Rear Bracket
* Seismic Compliance Optional
