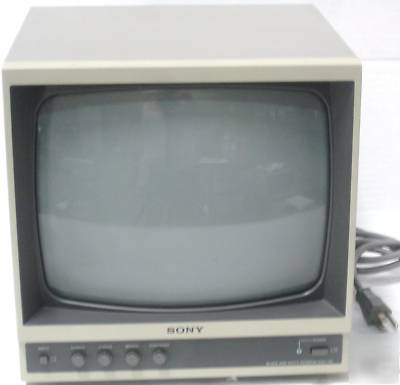

Sony ssm-125 12" inch hi-res black & white b&w monitor
This listing is for a monitor.

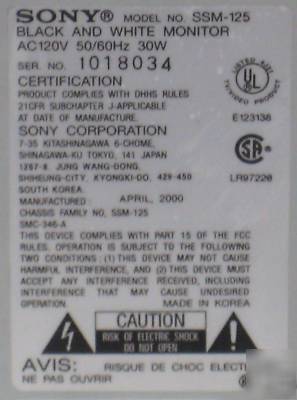

* Model/ Part#: SSM-125 (SSM125)
* Input Power: AC: 120V 50/60Hz, 30W
* Size: 12" (twelve inch) (12in) (12 in) (12inch) (12 inch)
* Description: High Resolution Black and White Monitor
The Sony SSM-125/125CE is a 12-inch black-and-white monitor designed for surveillance systems. It offers excellent picture quality with more than 750 TV lines of horizontal resolution. Two loop-through video inputs with a switchable 75W termination are provided to meet a wide variety of surveillance systems.
* SSM-125: EIA standard SSM-125CE: CCIR standard
* Excellent picture quality with more than 750 TV line horizontal resolution

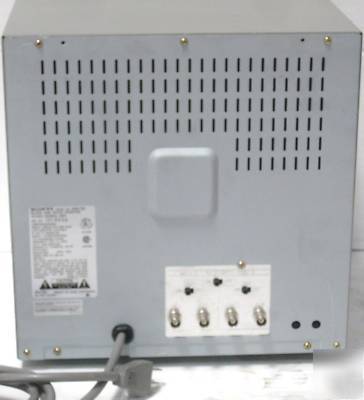

* Dual loop-through video inputs, with switchable 75W termination
* DC clamp switch provides a stable reference for the black level

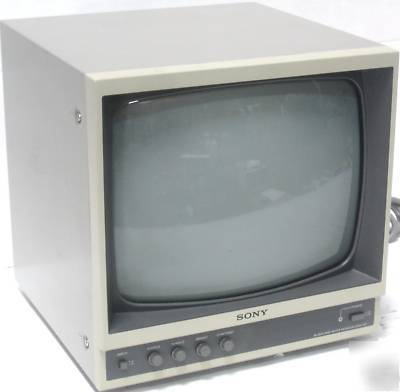

* Front controls: Power, INPUT select, H-hold, V-hold, contrast and brightness
* High immunity to external electrical and magnetic interference
* Suitable for many monitoring applications
SSM-125CE: CCIR standard
* Picture tube: 12-inch B/W measured diagonally, 90 deflection
* Video input: Impedance 75W/high switchable Level 0.5 2.0Vp-p/75W, sync negative, BNC-type ( 2)
* Video output: Impedance more than 10kW, loop-through, BNC-type ( 2)
* Horizontal resolution: More than 750 TV lines (at center)
* Power requirements: SSM-125: AC 120V, 50/60Hz
* SSM-125CE: AC 230V, 50/60Hz
* Operating temperature: 0 to 35 C (32 to 95 F )
* Storage temperature: 10 to 40 C (14 to 104 F )
* Mass: 9.2kg (20 lb 5 oz) Safety regulations: SSM-125: UL1410, CSA C22.2 No.1, FCC class A, IC class A, DHHS, DNHW
* SSM-125CE: T V, IEC-65, CE (EMC, LVD)
