Temperature data logger 4 channel com / rs-232 / RS232

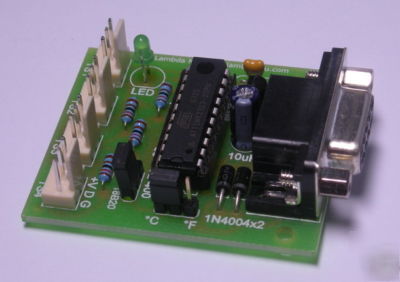

Temperature Data Logger 4 Channel COM / RS-232
* No software needed, can use general terminal software for example : Hyper Terminal which is free from Microsoft.
* Measurement -55 to 125 'C accuracy 0.1'C
* Select 'C or 'F by jumper on board.
* DS1820 , DS18S20 and DS18B20 can be used with this board.
* Automatic calibration, the distance of cable is not effect to the accuracy.
* Maximum 50 meter by 26 AWG and more than 100 meters by Lan CAT5e.
* 4 Sensors input in the same time and independent.
* Comes with 2 Set Sensor DS18B20 with 1 meter cable.
* PCB size 1.75" x 2" or 4.4cm x 5.1cm.
* English instruction how to use.
