Wireless biometric door access kit & magnetic lock
You are purchasing 1 Wireless Biometric Magnetic Lock System Kit With 1200 pounds Holding Force Magnetic Lock.

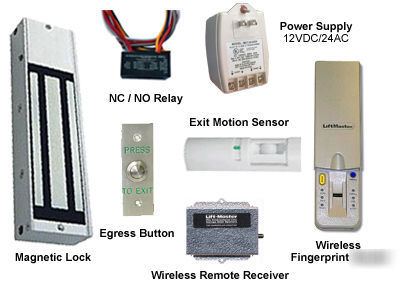

This wireless door entry access control application kit includes: 1 LiftMaster 379LM Biometric Fingerprint Wireless Keyless Entry System, 1 LiftMaster 312HM Universal Coaxial Receiver, 1 MGT2412DV Transformer, KIT-PAM2 Relay, HPB21 Press To Exit Button, DS150i Motion Detector and a 1200 LBS. Magnetic Lock.
Wireless Biometric Door Access Kit & 1200 lb. Magnetic Lock
This wireless door entry access control application kit includes: 1 LiftMaster 379LM Biometric Fingerprint Wireless Keyless Entry System, 1 LiftMaster 312HM Universal Coaxial Receiver, 1 MGT2412DV Transformer, KIT-PAM2 Relay, HPB21 Press To Exit Button, DS150i Motion Detector and a 1200 LBS. - 1200LSDSDM - Non-Weather Resistant, CE Approved, Magnetic Lock.
Model 1200LSDSDM Surface Mount Single Door Magnetic Lock with 1200 lbs. Holding Force
**Inswing applications of this magnetic lock require the MAG-LZ002 L & Z Bracket Set.
**Magnetic locks require a power supply. Please choose from the options below with or without power supply.
All our maglocks come with the armature plate, hardware and specs sheet.
Liftmaster 379LM Biometric Reader
This Fingerprint Keyless Entry device features fingerprint sensor technology to make access to your garage quick, easy, and secure. Your fingerprint acts as the access code to open and close the garage door, so access cannot be copied or passed on to others. Security+ rolling code technology.
* Open/close your garage door without a remote, keys, or PIN numbers
* Easy installation 2 screws, no wires
* Compatible with all 315MHz LiftMaster garage door openers
* Recognizes up to 4 unique fingerprints only registered users can gain access
* Weatherproof, slide-up protective cover
* Great for families or senior citizens
* Works in conjunction with LiftMaster model 377LM keyless entry
Liftmaster 312HM Wireless Receiver
This receiver is suitable for 1 automatic gate or garage door opening application. Includes rolling code technology. This unit is FCC certified at 315MHz and works with all Liftmaster Security+ remote control transmitters.
* External 8" whip antenna included
* 12V DC or 18-35V AC/DC, jumper selectable
* Security+ Rolling code technology
* 2-piece aluminum case with detachable cover
* High security memory stores up to 15 Security+ remote control or keyless entry codes
* Normal security memory stores up to 31 LiftMaster remote codes of any type
The PAM2 relay is an encapsulated multi-voltage device with leads that offer versatile, reliable performance in a convenient package. A considerable amount of the relay versions provide a red LED which, when illuminated, indicates coil energization. The PAM Series Relays are packaged with a self-tapping screw and a piece of double sided tape for easy installation almost anywhere. This item also includes wire-nuts to aid installation.
The PAM2 NO / NC Relay provides 7.0 Amp form C contacts. The relay may be energized by one of two input voltages: 12VDC or 24VDC. The input voltages are polarity sensitive and diode protected.
Magneticlocks.net push buttons are strong, reliable and very well priced!
Our Easy-to-activate Magneticlocks.net push buttons are excellent for high traffic areas, such as offices, convenience stores, building entrances and exits.
Heavy duty buttons and cast stainless steel face plates provide unparalleled performance.
This high visibility push button, Model HPB21 provides a clearly visible means of actuating an electric locking device / release. Our easy to operate, request-to-exit controls are ideal for use in any facility with access controlled entry/exit.
* Normally Closed & Normally Open Function
* Embossed "PRESS TO EXIT" can be easily recognized
The MGT2412DV is a Class 2 Plug in Transformer. This transformer is 12VDC / 24AC
The DS150i Series Exit Sensors are Passive Infrared Detectors designed for request to-exit applications. They detect motion in their coverage area and signal an access control system ordoor control device.
* Wrap-Around Coverage Pattern
* Wall and Ceiling Mountable
* Selectable Relay Trigger Mode
* Selectable Fail Safe/Fail Secure
* Internal Vertical Pointability
* 12 or 24 AC or DC Operation
* Up to 60 Second Adjustable Latch Time
* RELAY LATCH TIME Adjustable to 60 seconds
* RELAY MODE Programmable retrigger or non-retrigger mode
* POWER REQUIREMENTS 12 or 24 VAC or VDC, 26 mA @ 12 VDC
* POWER LOSS DEFAULT Programmable Fail Safe or Fail Secure modes
* RELAY OUTPUT Two Form C Contacts
* STORAGE & OPERATING TEMPERATURE -20 to +120 F / -29 to +50 C
* TEST FEATURES Externally visible activation LED
* DIMENSIONS 1.5" H., by 6.25" W., by 1.5" D. / 3.8 cm H., 15.8 cm W., 3.8cm
* PATTERN POINTABILITY 14 Vertical
* RADIO FREQUENCY INTERFERENCE(RFI) IMMUNITY No alarm or setup on critical frequencies in the range from 26 to 1000 Megahertz at 50 v/m.
* COVERAGE 8ft. X 10ft. / 2.4m x 3m MOUNTING Surface Mount
