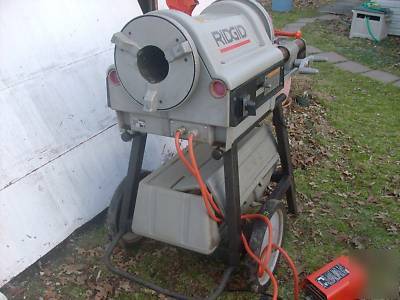

Ridgid 1224 pipe threader threading machine very nice
Lowered Price have closing on Tuesday so we need the funds next week.... Thank you And God Bless!! AL
This threader is in nice shape Purchased from the origonal owner you can see how clean it is It may need a little cleaning however for the most part this one is 8 or 9 out of ten.
Call with questions (***)-698-3733
* Threads 1/4"-2" pipe at 36 RPM and 2-1/2"-4" at 12 RPM
* The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
* An induction motor helps insure sounds levels well within the limits set by the regulating authorities
* A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
* 1/4"-2" Universal Die Head; 2-1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
* Approved to UL Standards (NRTLC)
* Pipe Capacity: 1/4" - 4" (6 mm - 100 mm), 4" - 6" (100 mm - 150 mm) with 161 Geared Threader
* Motor: 1-1/2 HP, single-phase, 60 Hz or 50 Hz, induction type
* Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch
* Gear Box: Two-speed gear box 3:1 ratio
* Chuck: Hammer-type with replaceable rocker-action jaw inserts
* Rear Centering Device: Cam-action
* Cutter: Model 764 full-floating, self-centering 1/4 "- 4" with F-229 cutter wheel
* Reamer: Model 774, 1/4" - 4" blade-type
* Pump: Self-priming, gerotor-type, automatic-reversing, constant flow
Model No. 1224 threading machine with foot switch
