DC Motor Wireless Controller (Climb and Descent)

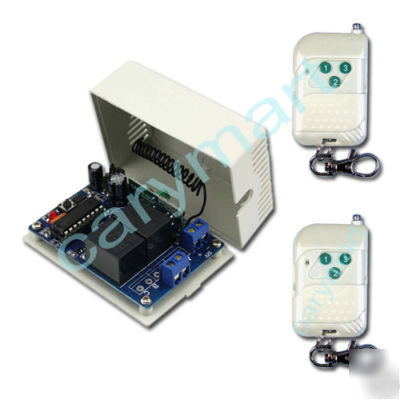

DC Motor RF Remote Control Transmitter & Receiver
* 1 X Receiver: S1FU-DC12 (Inversion Control Mode / DC12V)
* You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
* One/several transmitters can control one/several receivers simultaneously.
* Control Modes: Inversion (Toggle, Momentary, Latched)
* PCB size: 68mm x 48mm x 20mm
* Case size: 75mm x 55mm x 30mm
1) Setting control mode Toggle: Connect Jumper-1 and Jumper-2. Control mode Toggle: Press -> On; Press again -> Off.
Press button C: Terminals 1 and 2 are the output of DC 12V (1: , 2: ), motor rotates in the positive direction.
Press button C again: Terminals 1 and 2 no output, motor stops
Press button B: Terminals 1 and 2 are the output of DC 12V (1: , 2: ), motor rotates in the reversal direction.
Press button B again: Terminals 1 and 2 no output, motor stops
2) Setting control mode Momentary: Only connect Jumper-1. Control mode Momentary: Press and hold -> On; Release -> Off.
Press button C and hold: Terminals 1 and 2 are the output of DC 12V (1: , 2: ), motor rotates in the positive direction.
Release button C: Terminals 1 and 2 no output, motor stops
Press button B and hold: Terminals 1 and 2 are the output of DC 12V (1: , 2: ), motor rotates in the reversal direction.
Release button B: Terminals 1 and 2 no output, motor stops
3) Setting control mode Latched: Do not connect Jumper-1 and Jumper-2. Control mode Latched: Press -> On; Press another button -> Off.
Press button A: Terminals 1 and 2 no output, motor stops.
* The receivers with other power supply: S1FU-DC09 (9VDC), S1FU-DC24 (24VDC).
