IM4831-8P2 ims high perf. microstepping motor driver

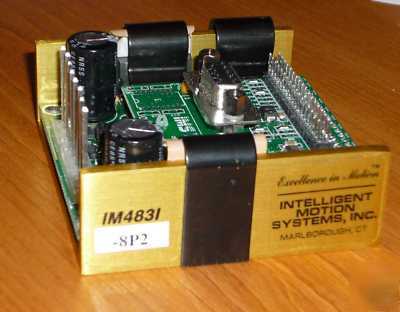

IM4831-8P2 Intelligent Motion Systems Inc. High Performance Microstepping Driver
This is old stock, unused in its original packaging.
Supplied with hardware and software reference manuals.
Sold as used with no warrantee.
Incorporated into the IM483I drivers are proprietary circuits that minimize ripple current while maintaining a 20 kHz chopping rate. This prevents additional motor heating that is common with drivers requiring higher chopping rates. Now low inductance stepper motors can be used to improve high speed performance and system The built-in indexer on the IM483I allows the user, via a serial link, to program parameters such as acceleration/deceleration ramps, velocity, position, resolution, drive current, etc., to form simple or complex motions. Programs can be executed by sending single commands, or can be stored in the on-board non-volatile memory which can then be executed on power-up or by discrete user inputs. The indexer has a variety of built in functions, including limit switch inputs, a homing algorithm, and general purpose inputs and outputs that can be used to detect switch closures and to activate solenoids and/or other external devices.
Extremely Compact (3 x 2.75 x 1.2 in.) (76.2 x 69.85 x 30.48mm)
Short Circuit and Over Temperature Protection
High Output Current (3 Amps RMS, 4 Amps Peak)
Advanced Surface Mount and ASIC Technology
Fixed or Variable Step Resolution
1/100 Step Command Resolution
Programmable Acceleration & Deceleration Ramps
Programmable Motor Run and Hold Currents
RS-422 Party Line Operation (Optional RS232)
2k Bytes of Nonvolatile Memory for Program Storage
Optically Isolated Home and Limit Switch Inputs
