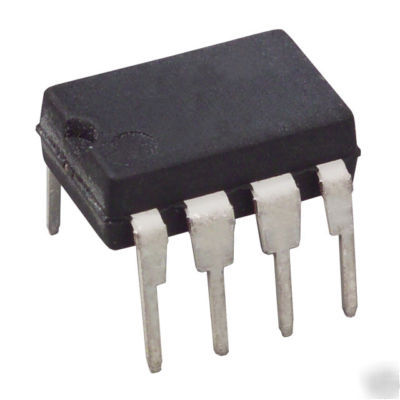

Ic chips: 1 pc AD626AN low cost single differential amp
- Pin Selectable Gains of 10 and 100
Single Supply Range of +2.4 V to +10 V
Dual Supply Range of 61.2 V to 66 V
Wide Output Voltage Range of 30 mV to 4.7 V
Low Input Offset Voltage: 500 mV max
Large Common-Mode Range: 0 V to +54 V
Fast Settling Time: 24 ms (0.01%)
Series Resistive Inputs (RIN = 200 kV)
Allows 50 V Continuous Overload
- Interface for Pressure Transducers, Position Indicators,
Strain Gages, and Other Low Level Signal Sources
