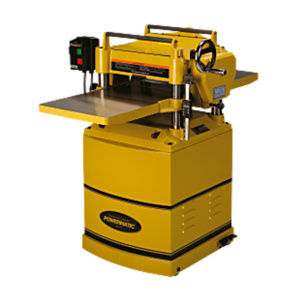

New brand powermatic 15" planer 3HP, 1PH - 15S
Maximum Planing Thickness: 6 "
Maximum Full Width Depth of Cut: 1/8 "
Infeed Roller Diameter: 2.07 "
Outfeed Roller Diameter: 2.07 "
Table Size: 15" x 48" (w/extensions)
Dust Collection Minimum CFM Required: 800 cu.ft/min
Segmented Infeed Roller Diameter: 2.07 "
Overall Dimensions: 48 x 28 x 43-1/2
Spiral cutterhead and knives provide smoother cutting and a finer finish than conventional knives
Powerful 3HP TEFC motor controlled with a magnetic switch for safety
Three V-belts transfer maximum power to the cutterhead
Digital readout ensures accurate table positioning
Large cast iron handwheel positions table quickly and easily
Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble free operation
Large, precision ground cast iron table and extensions provide maximum workpiece support
Two-speed gearbox features automatic chain tensioner
One-piece welded steel stand has built-in lockable casters
Steel top-mounted return rollers speed repetitive cuts
Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
Table locks firmly in place, preventing movement during cutting
3HP TEFC motor with magnetic controls
Spiral cutterhead with three flexible steel knives
Closed stand with built-in casters
