New vat right angle hv valve 26432-KA21/iso-kf NW40

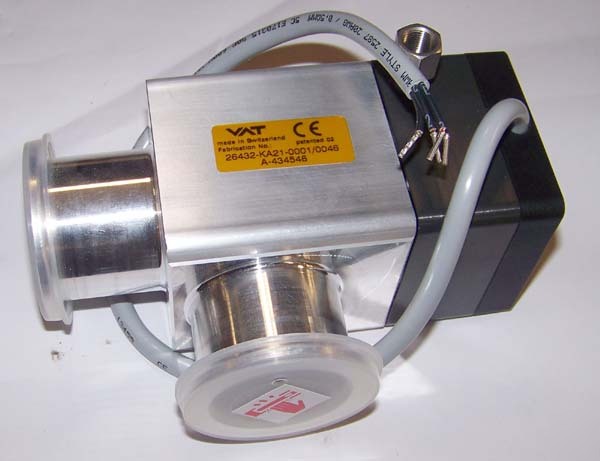

NEW Vat Right Angle HV Valve 26432-KA21/ISO-KF NW40
This is a New Vat HV Angle Valve Model 26432-KA21. This is an electromagnetic actuator with large conductance and differential pressure resistance. This item was received as surplus inventory from a semiconductor company no longer in business. Cosmetically, the item in new and flawless. We do not include manuals or hardware with this item. The photos are of the actual item for sale. Only what is shown in the photos is included.
* Actuator : Pneumatic actuator with position indicator without solenoid valve single acting closing spring
* Sealing materials : Bonnet: FKM (VITON ) / Gate: FKM (VITON )
* Pressure range: 1 10-8 mbar - 5.0 bar (abs)
* Molecular flow conductance : 45 ls-1
* Max. differential pressure closed position: 5 bar
* Max. pressure on seat side during opening : 1 bar
* Compressed air pressure min. - 4 - 8 bar
* max. overpressure : 58 - 116 psi
* Volume of air cylinder : 0.035 l / 0.001236025 ft3
* Closing or opening time : 0.55s
* Max. temperature : Valve body 150 C
