Penn hazardous locations ventillation 12" exhaust fan

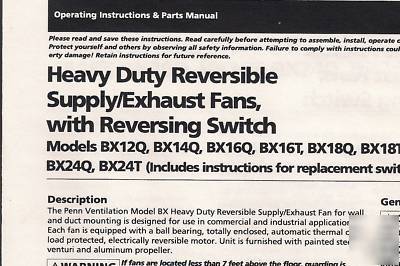

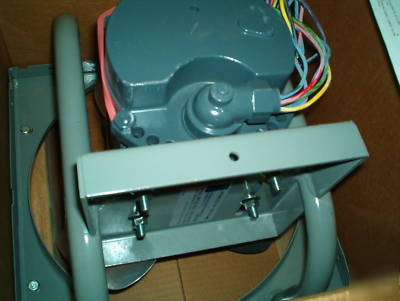

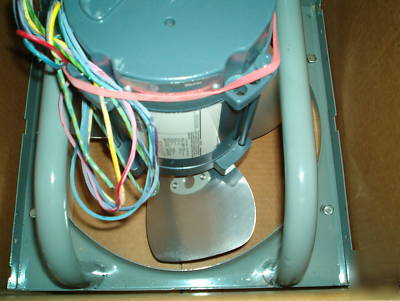

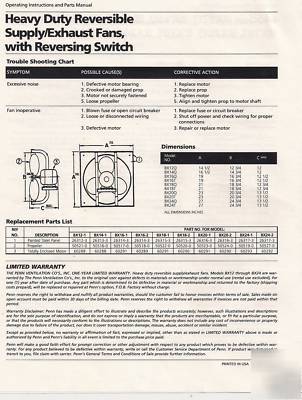

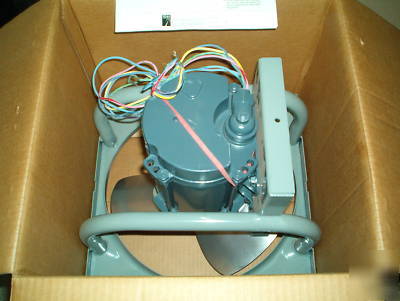

this sale is for 1 ,,, PENN VENTILLATOR CO. , BREEZEX ,, EXHAUST FAN FOR WALL MOUNTED SLEEVES,,,HEAVY DUTY REVERSIBLE SUPPLY EXAUST FAN WITH EXPLOSION PROOF MOTOR. This is a new/surplus item ,, older model from around 1999,,, the part no. on the fan is XPF120,,,McMaster Carr no. 1944k11 the enclosed instructions are for MODEL BX12Q which i believe to be the current model no. for the same fan,,, this is designed as a wall mounted fan for a wall sleeve exhaust so it come with no grill or guard,,,specs are as follows 1/6 hp,, single phase,,115v,,1725 rpm,,,1100 cfm @ 1/6 HP,, motor is g.e. AG-47032, 3KH32LN184AX, OPL030891 ,, CLASS I GROUP -D,,CLASS II GROUP EFG,,FOR HAZARDOUS LOCATIONS,,NOTE; although the instructions state "with reversing switch", this refers to the wiring configuration and does not inlude an actual switch,,,, THE FAN IS ATTACHED TO WOOD THAT IS STAPLED TO THE BOX SO I CANNOT REMOVE IT FROM THE BOX FOR PHOTOS WITHOUT DESTROYING THE BOX,,,,14-1/2 WIDE ,, 14-1/2" HEIGHT,,,12" DEPTH,,, BLADE DIAMETER IS 12"
G locations. Have connections for hardwiring. Aluminum blades.
Without Guard Frame is 16-ga. steel for blade dias. up
; 14-ga. for 42 and 48 dias. With Guard Frame is 18-ga. steel for blade dias. up to 20 ; 14-ga. for 24 dia. and larger.
SP 1 8 SP 1 4 SP rpm hp Amps Wd. Ht. Dp. Each
. . . . . . . . 1,400. . . . . . 1,260. . . . . . 1,050. . . . . . . . .1725 . . . . . . 1 6 . . . . . . . . . 3.3 . . . . . . . . . . . . .141 2 141 2 151 2 . . . . . . . 1944K11. . . .$420.31
