Vertical float switch (polypropylene)

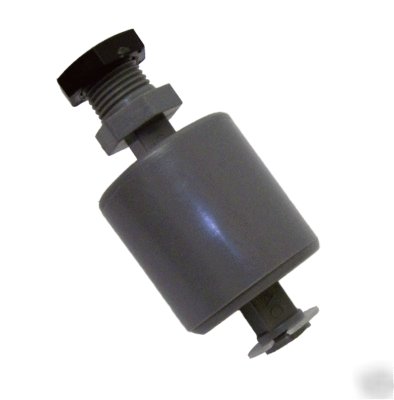

Vertical Float Switch manufactured in Polypropylene, so it has excellent compatability with many chemicals.
This float switch is 54mm long and has a 1/8 inch NPT thread with lock nut. The thread is 10mm long and the float body is 25mm in diameter.
The electrical lead outs are 600mm long and the switch is compatable with all voltages up to 240v (ac) and 24v (dc). The swithes are pilot duty only (0.5A) so may need relays to control pumps etc.
The contacts on the switch are normally open or normally closed as the float body is reversable
