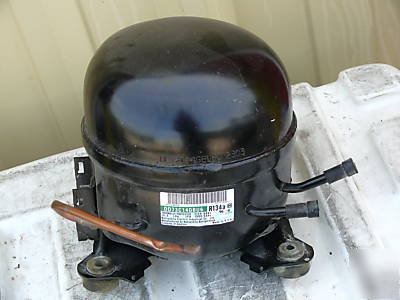

hvac matsushita compressor DD73C14GBU6 r-134A
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Refrigerant Control . . Capillary Tube
Application . . . . . . . . . . . . Low Back Pressure Evaporator
Compressor Cooling . . . . Fan Cooling Temp.
Range . . . . . . . -31 F to 23 F / -35 C to -5 C
Rated Performance Data Performance Curves
Capacity . . . . . . . . . . . . . .881 Btu/h 7% 973 Btu/h 7%
E.E.R. . . . . . . . . . . . . . . . . .4.84 Btu/Wh 7% 5.62 Btu/Wh 7%
Current . . . . . . . . . . . . . . .2.29 Amps 2.18 Amps
Motor Input . . . . . . . . . . . . . . .182 Watts 173 Watts
Rated Current . . . . . . . . . . . . 2.22 Amps
Locked Rotor . . . . . . . . . .16.9 Amps
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . .ISO VG 10
Shell Temp . . . . . . . . . . . . . .170.0 F / 76.0 C
Condensing Temp . . . . . . . . . (I) 130.0 F / 54.4 C
Evaporating Temp . . . . . . . . .-10.0 F / -23.3 C
Ambient Temp . . . . . . . . . . . .90.0 F / 32.2 C
Gas Superheat . . . . . . . . . . .90.0 F / 32.2 C
Liquid Sub-Cooling . . . . . . . . 90.0 F / 32.2 C
