2 phd 2 finger precision angular air gripper 8420-02

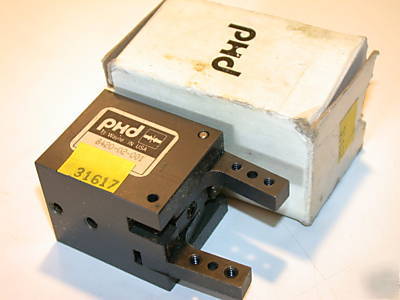

2 PHD 2 FINGER PRECISION ANGULAR AIR GRIPPER 8420-02
Precision 2 jaw angular gripper features a pivot design for low friction and excellent part position repeatability.
Hardened steel pivot mechanism
Close tolerance jaw mechanism minimizes jaw play
Three mounting surfaces as standard
5 million cycles minimum rated life with standard seals
Rugged jaw and body construction to withstand high impact and shock loads
GRIP BACKLASH - Within 1 degree per jaw
Grip force is easily adjusted by regulating air pressure.
internal shock pad absorbs impact and decreases noise levels
hardcoated aluminum body with precision dowel holes provides a wear resistant bearing for pivot pins
These units are ideal for the transfer of products during assembly or pick and place operations.
http://litstore.phdinc.com/pdf.asp?filename=8400A.pdf
I will fully guarantee this great unit - more available.
