38" x 38" x 380" gray/futurmill openside planer mill

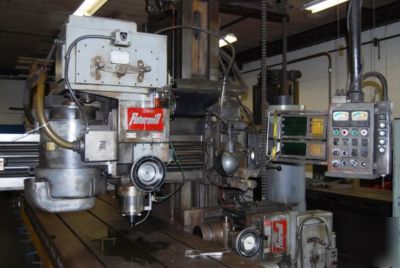

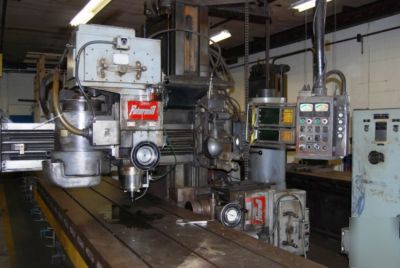

ONE Preowned GRAY/FUTURMILL Openside Planer Mill
MDL. OPENSIDE, S/N 522005, AGE: 1965 CONVERTED
COMBINATION PLANER MILL & PLANER
CAPACITY .. .. 38" X 38" X 380"
HEIGHT UNDER RAIL............................................................. 38"
MAXIMUM MILLING WIDTH.................................................... 38"
TABLE SIZE............................................................................. 38" X 360"
TABLE TRAVEL....................................................................... 360"
SPINDLE SPEEDS (18)........................................................... 56-890 RPM
SPINDLE TAPER..................................................................... #50 MMT
(1) 30 HP FUTURMILL VERTICAL RAIL HEAD
(1) 30 HP FUTURMILL SIDE HEAD
(1) VERTICAL PLANER HEAD
3-AXIS DIGITAL READOUT SYSTEM
ROLL UP STEEL WAY COVER ON X-AXIS
* DUAL DRIVE SYSTEM FOR USE AS SINGLE POINT PLANER OR PLANER MILL
